DL347 LED Down Light

This downlight is an ideal alternative to traditional lamps. It adopts high lumen SMD LED chip, and the high transmittance PC cover provide a uniform lighting output. AL1050 aluminium housing offers a great thermal management, besides, the driver is on the back of the lamp and is separated from PCB board, which with less effect by light source heat so that the driver could have longer lifespan. This downlight is CCT adjustable, and it has different color frame for options.

Size 4 inch, 6 inch options.
RA: 80.
Damp location.

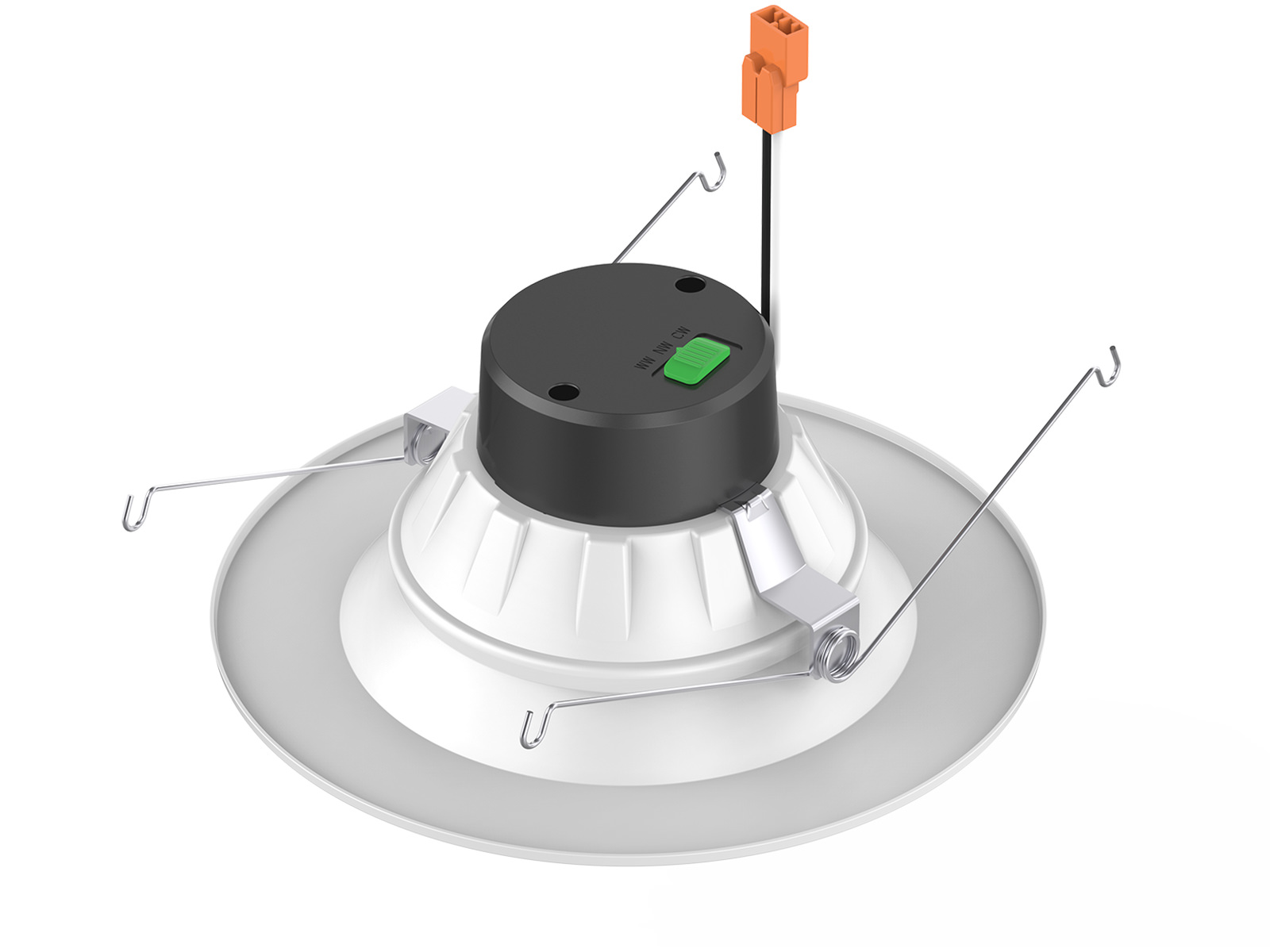

Adjustable CCT(3000K+4000K+5000K)with slide switch.
Built-in driver with high efficiency.
Triac dimming.

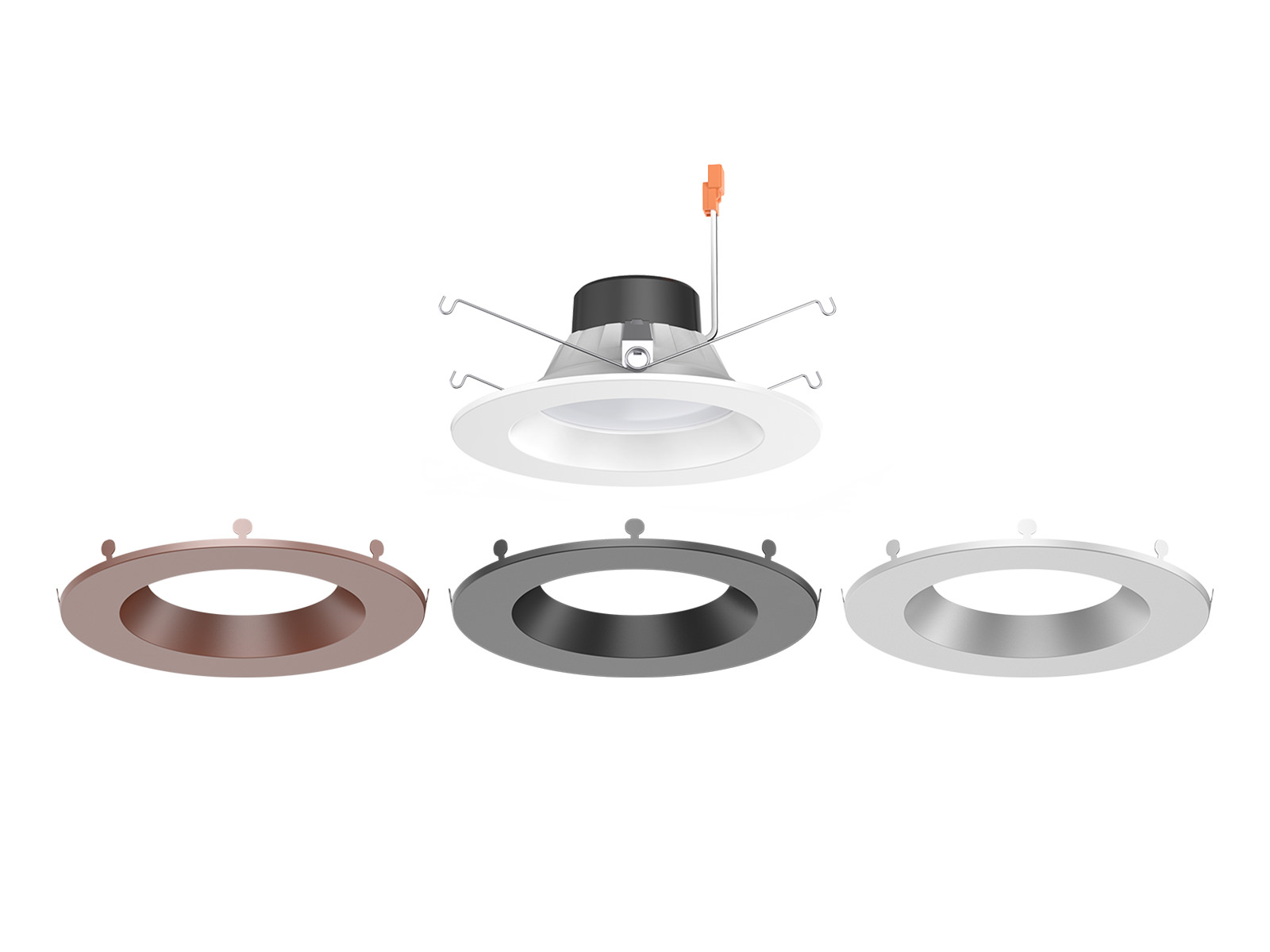

Front frame color: White, black, silver, golden.

Code No.	DL347-4-10W	DL347-6-10W	DL347-6-15W
Dimension(mm)	Ø5.12"*2.67"	Ø7.36"*3"
Cutout (mm)	-
Watt(W)	10W	10W	15W
Rated Input Voltage(V)	AC 120V
Input Voltage(V)	AC90-145V
LED Module Input	-
Light Source	SMD
SDCM	SDCM <6
CCT(K)	3-CCT: 3000K + 4000K + 5000K
CCT Selection DIP Switch	YES
CRI	80
Beam Angle (°)	100°
UGR	–
LED Driver	Built-in
Dimming Option	Triac
Sensor	-
Emergency Kits	-
Electrical Class	No Ground
Ingress Protection (IP Rating)	Damp Location
Impact Resistance (IK Rating)	-
Product Finishing(Base)	White RAL 9016
Materials of Optics	PC
Materials of Housing	Aluminum
Lifetime (hr)	50,000H
Glow wire test (℃ )	750°C
Operating Temp. (℃ )	-20℃ ~45℃
Storage Temp. (℃ )	-20℃ ~65℃
Installation	Recessed
