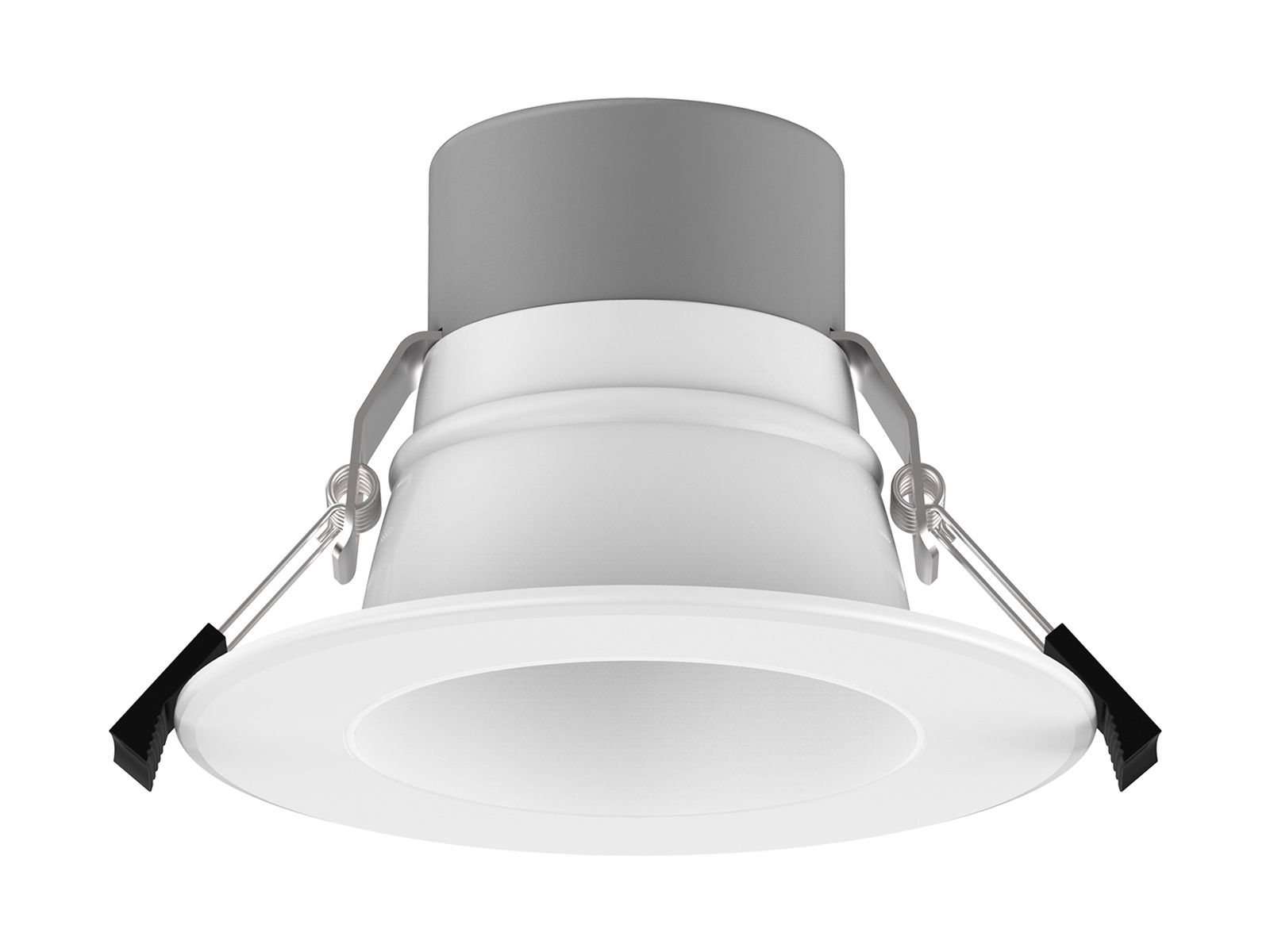

DL254 LED DownLight

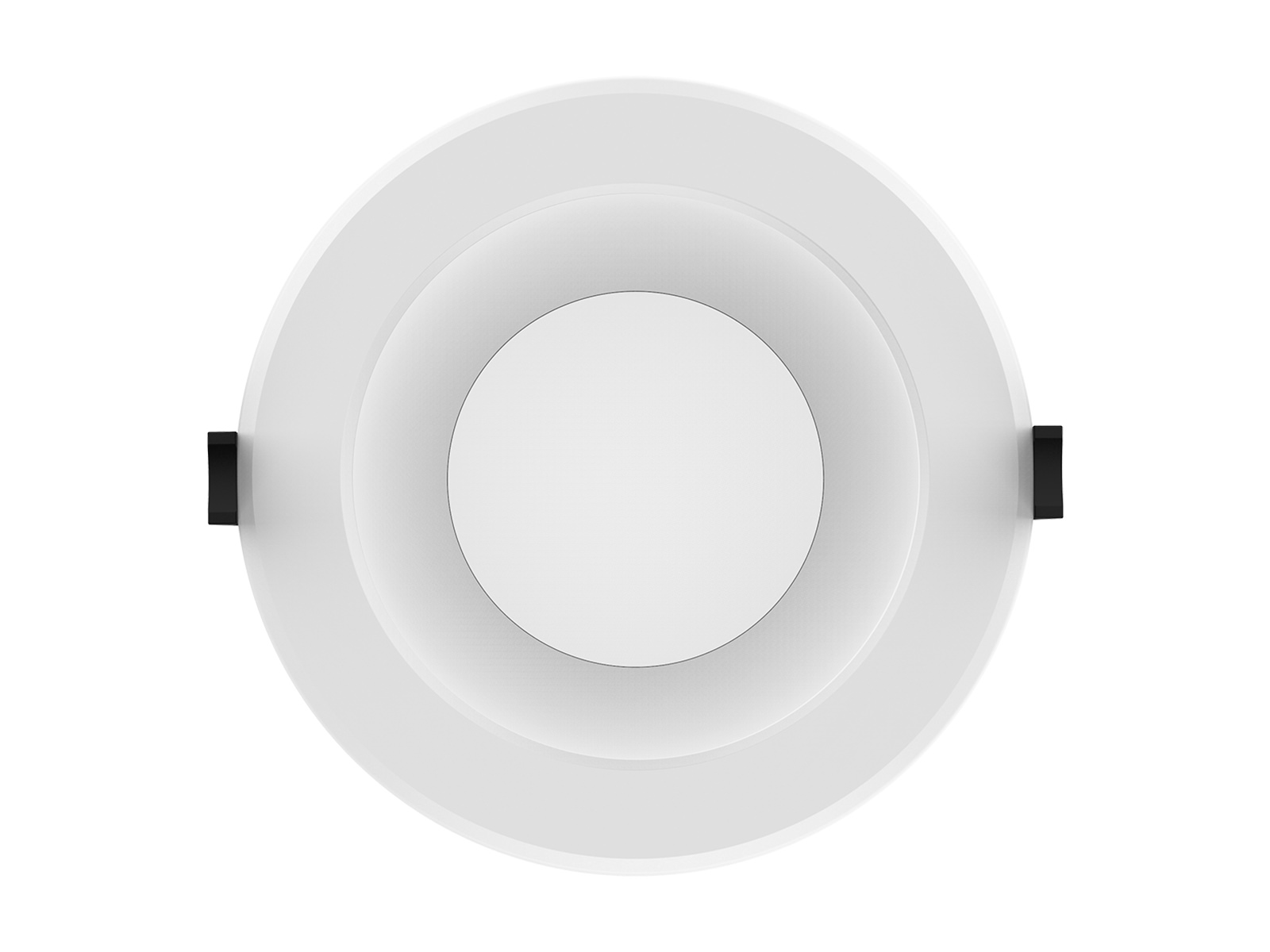

This downlight is a compact design, 2835 SMD chip and high transmittance PC cover provide a uniform lighting output.
Aluminum housing offers a great thermal management. Besides, it has a convenient mounting design, which makes a quick
installation and easier maintenance. This fitting can be used for retrofit or new construction installation.

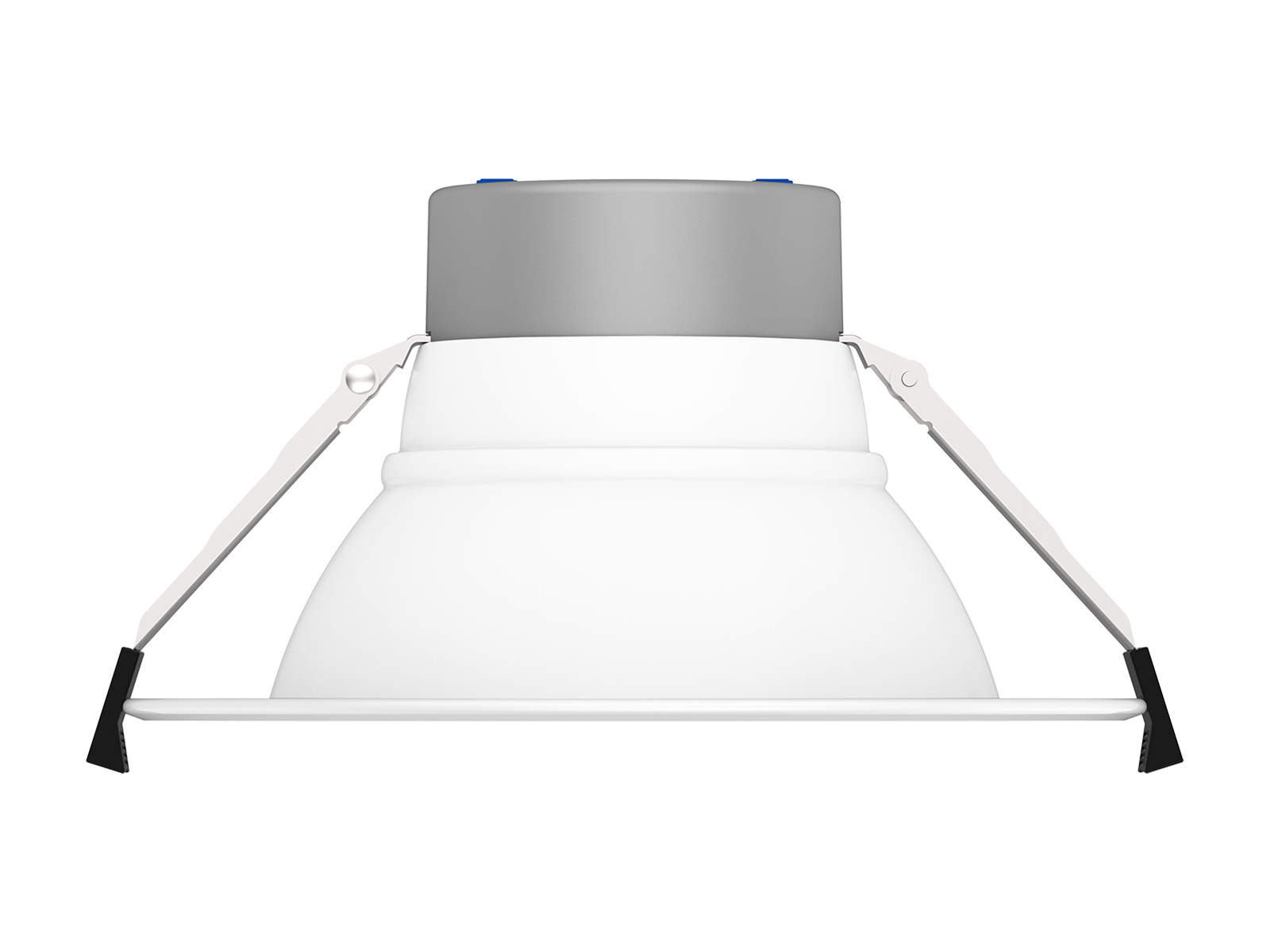

Complete size 4/6/8/10inch options
High lumen efficiency, 100-115LPW.
Wet location, IC and airtight rated.
3CCT Adjustable 3000K+3500K+4000K or other options.
Adjustable power option.
Internal flicker free driver.
0-10V dimming.
Deep recessed light source, lower glare.

Code No.	DL254-4-12W-OAC3	DL254-6-16W-OAC3	DL254-6-33W-OAC3	DL254-8-22W-OAC3	DL254-10-33W-OAC3
Dimension(Inch/mm)	Ø5-15/16"*3-5/8"	Ø8-5/16"*4-3/8"		Ø10-5/16"4-7/8"	Ø11-9/16"*5-1/2"
Cutout (mm)	Ø4"~5-1/4"	Ø6-3/16"~7-1/2"		Ø8"~9-1/2"	Ø8-7/8"~10-5/8"
Watt(W)	6/8/12W	8/12/16W	20/26/33W	12/16/22W	22/28/33W
Rated Input Voltage(V)	120V-277V
Input Voltage(V)	AC100-305V		AC108-305V	AC100-305V
LED Module Input	-
Light Source	SMD
SDCM	<6
CCT(K)	3-CCT: 3000K + 3500K + 4000K / 3000K+4000K+5000K
CCT Selection DIP Switch	YES
CRI	80 /90
Beam Angle (°)	80°			90°
UGR	-
LED Driver	built-in
Dimming Option	0-10V
Sensor	-
Emergency Kits	-
Electrical Class	Class I
Ingress Protection (IP Rating)	Wet location
Impact Resistance (IK Rating)	-
Product Finishing(Base)	White RAL 9016
Materials of Optics	PC
Materials of Housing	PC/Aluminum
Lifetime (hr)	50,000h
Glow wire test (℃ )	850℃
Operating Temp. (℃ )	25℃
Storage Temp. (℃ )	-20℃ ~65℃
Installation	Recessed
