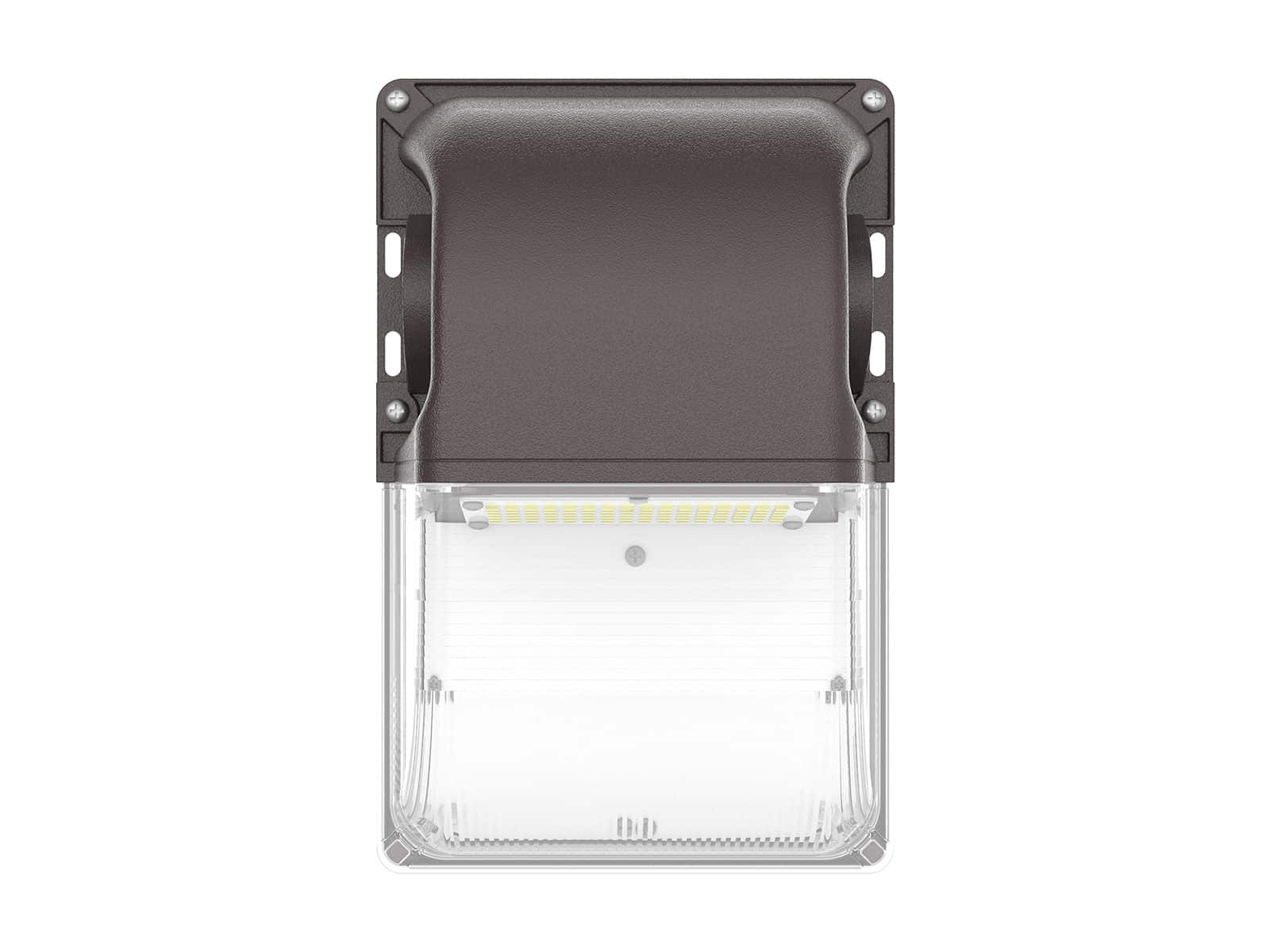

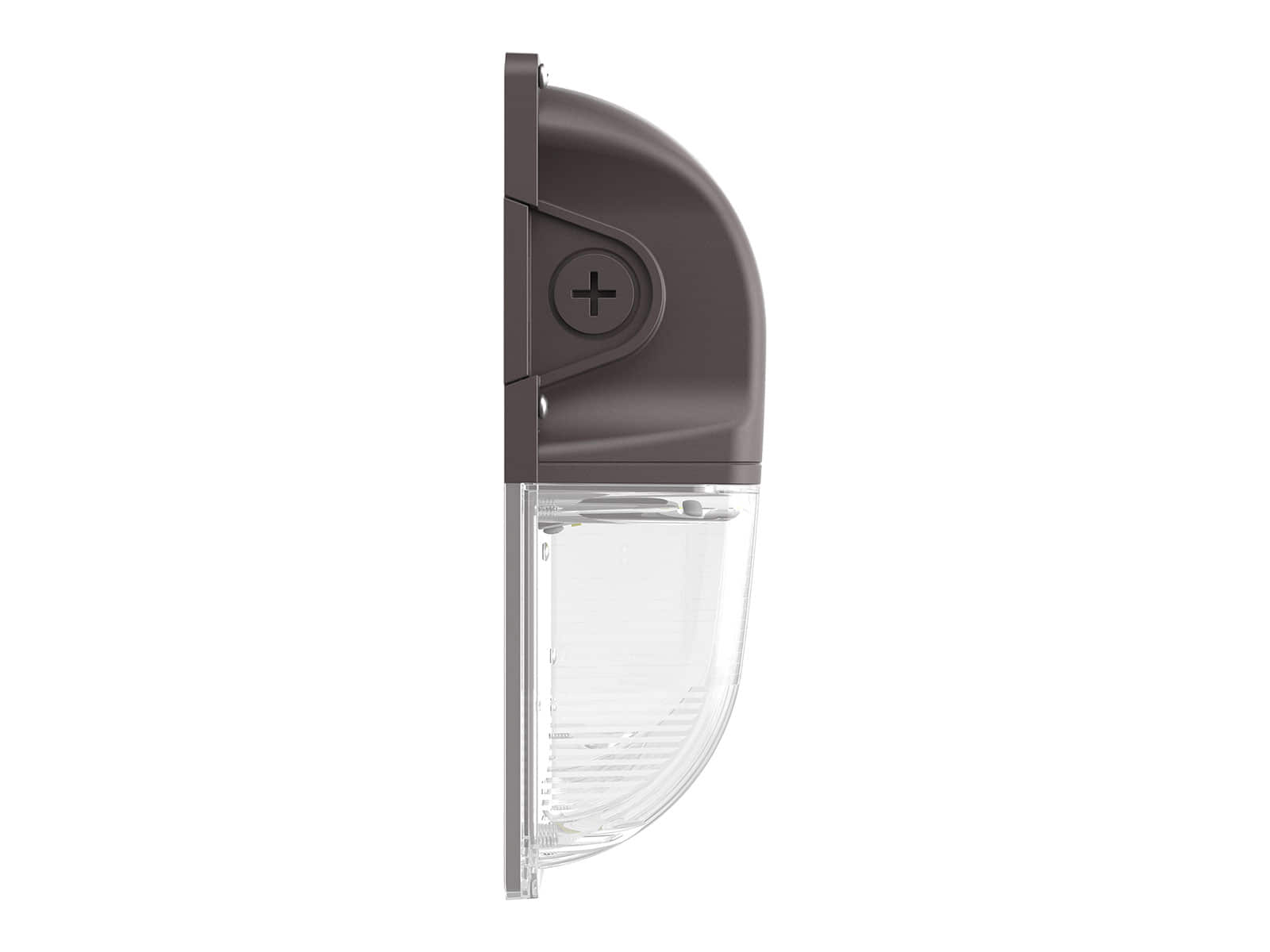

WP20 CCT & Wattage Adjustable Mini Wall Pack

RZ's mini wall lights use the latest high-performance LED chips, which are high-brightness and low-energy consumption. They can be configured with automatic light-sensing functions that automatically turn off at sunrise or during the day, and automatically light up at sunset or at night,  making them highly energy-efficient. The lamp body is composed of a die- cast aluminum ADC12 shell and a transparent lens, which is waterproof and will not seep water. A wide range of applications include stairwells, passageways and entryways in commercial and residential settings.

  • Up to 130lm/W.
  • 3 CCT and 3 Wattage Selectable.
  • Automated Dusk to Dawn photocell functionality.
  • ADC12 Aluminum Die Casting housing provides excellent heat dissipation.
  • ETL/cETL/ DLC Premium listed.
  • Lifespan: >50,000Hrs.
  • Wet location rated IP65.

Applications: Security lighting, Entryways, Stairwells, Hallways, Outdoor commercial, Outdoor residential

Model NO. # Size (mm) Watts CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
WP20-15L-X-YY 230*150*72.3 15W or 15W/12W/8W Selected Single CCT    3000K-6500K 130lm/W 1950 LM @ 15W AC120-277V 0-10V >80 100°
WP20-30L-X-YY 230*150*72.3 30W or 30W/20W/15W Selected Single CCT    3000K-6500K 130lm/W 3900 LM @ 30W AC120-277V 0-10V >80 100°
WP20-30L-X-3CCT 230*150*72.3 30W/20W/15W Selected 3000/4000/5000K 3CCT Selected 130lm/W 3900 LM @ 30W AC120-277V 0-10V >80 100°
