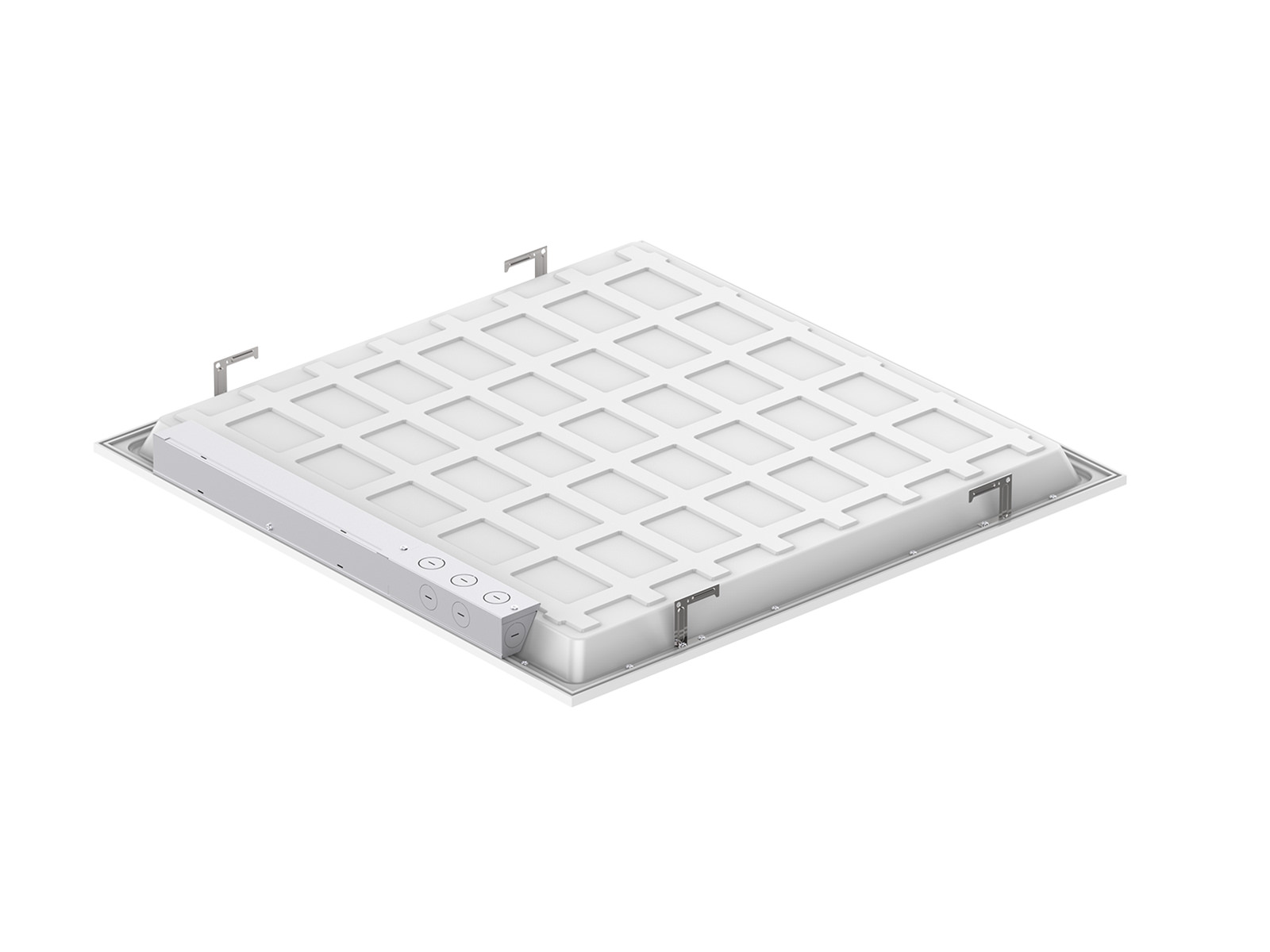

RZ PL-CK LED panel is a direct lighting product with high lumen efficiency. It makes full use of all light and is more cost effective compared with side lighting LED panel light. Adopt optical lens to offer a uniform light effect. With integrated iron plate, providing great thermal management.
Code No. | PL2X2- 20W-CK | PL2X2- 30W-CK | PL2X2- 40W-CK | PL1X4- 20W-CK | PL1X4- 30W-CK | PL1X4- 40W-CK | PL2X4- 40W-CK | PL2X4- 50W-CK | PL2X4- 60W-CK | |
---|---|---|---|---|---|---|---|---|---|---|
Dimension(mm) | 603*603*45 | 303*1213*45 | 603*1213*45 | |||||||
Watt(W) | 20W | 30W | 40W @max | 20W | 30W | 40W @max | 40W | 50W @max | 60W @max | |
(optional:25W / | (optional:25W / | (optional:30W / | (optional:40W / | |||||||
30W / 40W) | 30W / 40W) | 40W / 50W) | 50W / 60W) | |||||||
Rated Input Voltage(V) | AC100-277V | |||||||||
Input Voltage(V) | AC90-305V | |||||||||
LED Module Input | 30-42V DC 500mA CC | 30-42V DC 750mA CC | 30-42V DC 950mA CC | 30-42V DC 500mA CC | 30-42V DC 750mA CC | 30-42V DC 950mA CC | 30-42V DC 950mA CC | 30-42V DC 1200mA CC | 30-42V DC 1500mA CC | |
Light Source | SMD | |||||||||
SDCM | <6 | |||||||||
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3500K + 4000K + 5000K | |||||||||
CCT Selection DIP Switch | Yes | |||||||||
CRI | ≥80 | |||||||||
Beam Angle (°) | 120° | |||||||||
UGR | – | |||||||||
LED Driver | Built-out | |||||||||
Dimming Option | 0-10V | |||||||||
Electrical Class | Class Ⅰ | |||||||||
Ingress Protection (IP Rating) | IP40 | |||||||||
Product Finishing(Base) | White | |||||||||
Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||||||||
Materials of Housing | Aluminum(Frame) | |||||||||
Lifetime (hr) | 50,000h | |||||||||
Glow wire test (C ) | 650C | |||||||||
Operating Temp. (C ) | -20C ~45C | |||||||||
Storage Temp. (C ) | -20C ~65C | |||||||||
Installation | Surface mount/ Pendant/ Recessed |
Code No. | PL2X2- 20W-CK | PL2X2- 30W-CK | PL2X2- 40W-CK | PL1X4- 20W-CK | PL1X4- 30W-CK | PL1X4- 40W-CK | PL2X4- 40W-CK | PL2X4- 50W-CK |
---|---|---|---|---|---|---|---|---|
Dimension(mm) | 603*603*45 | 303*1213*45 | 603*1213*45 | |||||
Cutout (mm) | – | |||||||
Watt(W) | 20W | 30W | 40W @max (optional:25W / 30W / 40W) | 20W | 30W | 40W @max (optional:25W / 30W / 40W) | 40W | 50W @max (optional:30W / 40W / 50W) |
Rated Input Voltage(V) | AC100-277V | |||||||
Input Voltage(V) | AC90-305V | |||||||
LED Module Input | 30-42V DC | 30-42V DC | 30-42V DC | 30-42V DC | 30-42V DC | 30-42V DC | 30-42V DC | 30-42V DC |
500mA CC | 750mA CC | 950mA CC | 500mA CC | 750mA CC | 950mA CC | 1050mA CC | 1200mA CC | |
Light Source | SMD | |||||||
SDCM | <4 | |||||||
CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3500K + 4000K + 5000K | |||||||
CCT Selection DIP Switch | Yes | |||||||
CRI | ≥80 | |||||||
Beam Angle (°) | 120° | 90° | 120° | 90° | 120° | |||
UGR | <22 | |||||||
LED Driver | Built-out | |||||||
Dimming Option | 0-10V | |||||||
Sensor | – | |||||||
Emergency Kits | – | |||||||
Electrical Class | ClassⅠ | |||||||
Ingress Protection (IP Rating) | IP40 | |||||||
Impact Resistance (IK Rating) | – | |||||||
Product Finishing(Base) | White | |||||||
Materials of Optics | PMMA(Lens)+PS(Diffuser) | |||||||
Materials of Housing | Aluminum(Frame) | |||||||
Lifetime (hr) | 50,000h | |||||||
Glow wire test (℃ ) | 650℃ | |||||||
Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||
Storage Temp. (℃ ) | -20℃ ~65℃ | |||||||
Installation | Surface mount/ Pendant/ Recessed |
