DB77E Architectural LED Linear Light

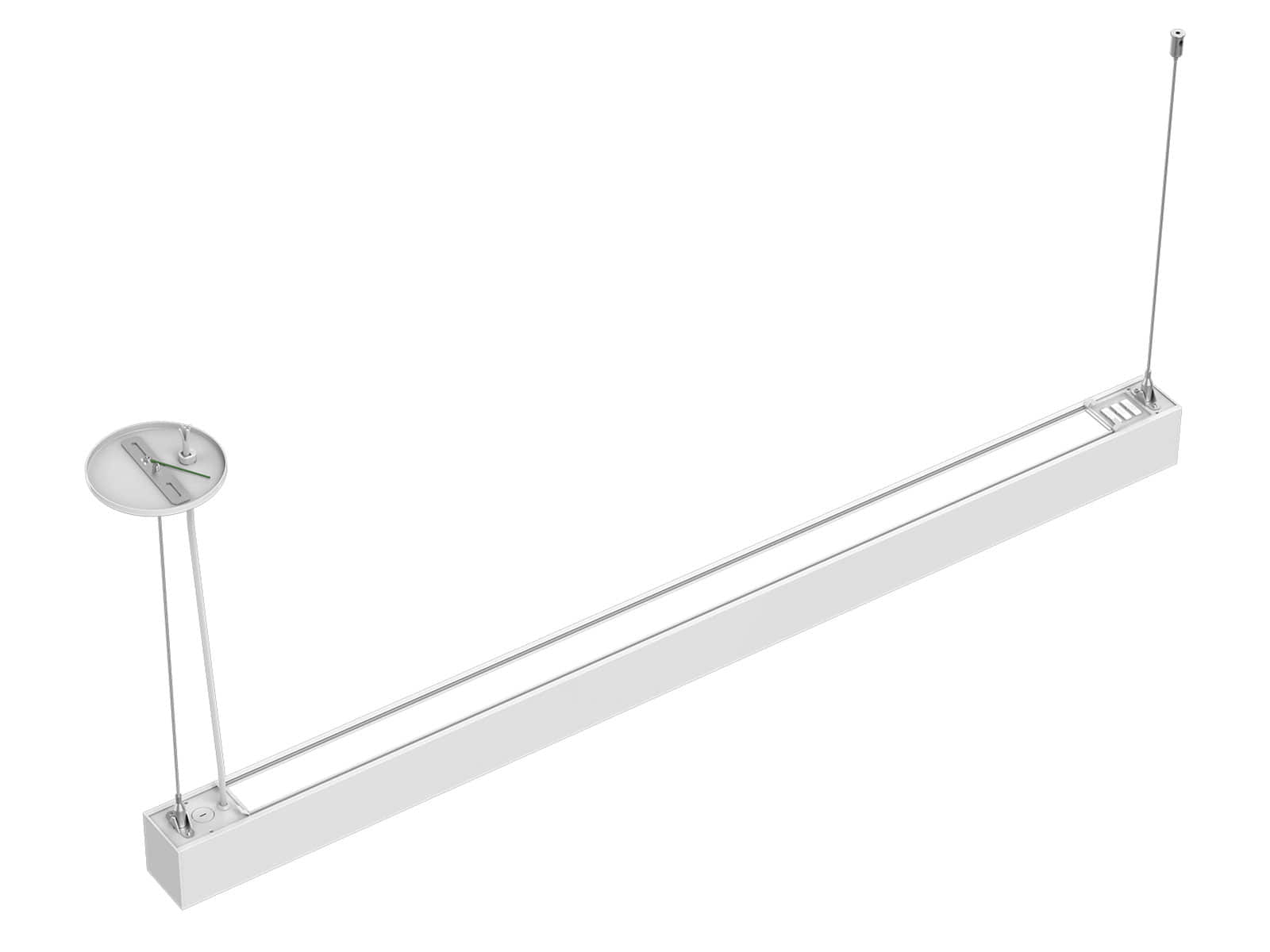

DB77E series is a LED pendant light with both direct and indirect lighting, which is designed for commercial and residential lighting interiors, available in lengths 2ft, 4ft & 8ft and can be continuous seamless runs to any length. The fixture also oﬀers wattage adjustable and individual color temperature switching from 3500K, 4000K & 5000K both up and downlight that controlled separately.

Working voltage 120-277V and 120-347V for options.
Light Direcon is selectable from Down only, Up only or both Down & Up lights.
Up 100%+Down 0%, Up 70%+Down 30%, Up 50%+Down 50%, Up 30%+Down 70%, Up 0%+Down 100%, ﬁve lighng distribuon ways switchable.

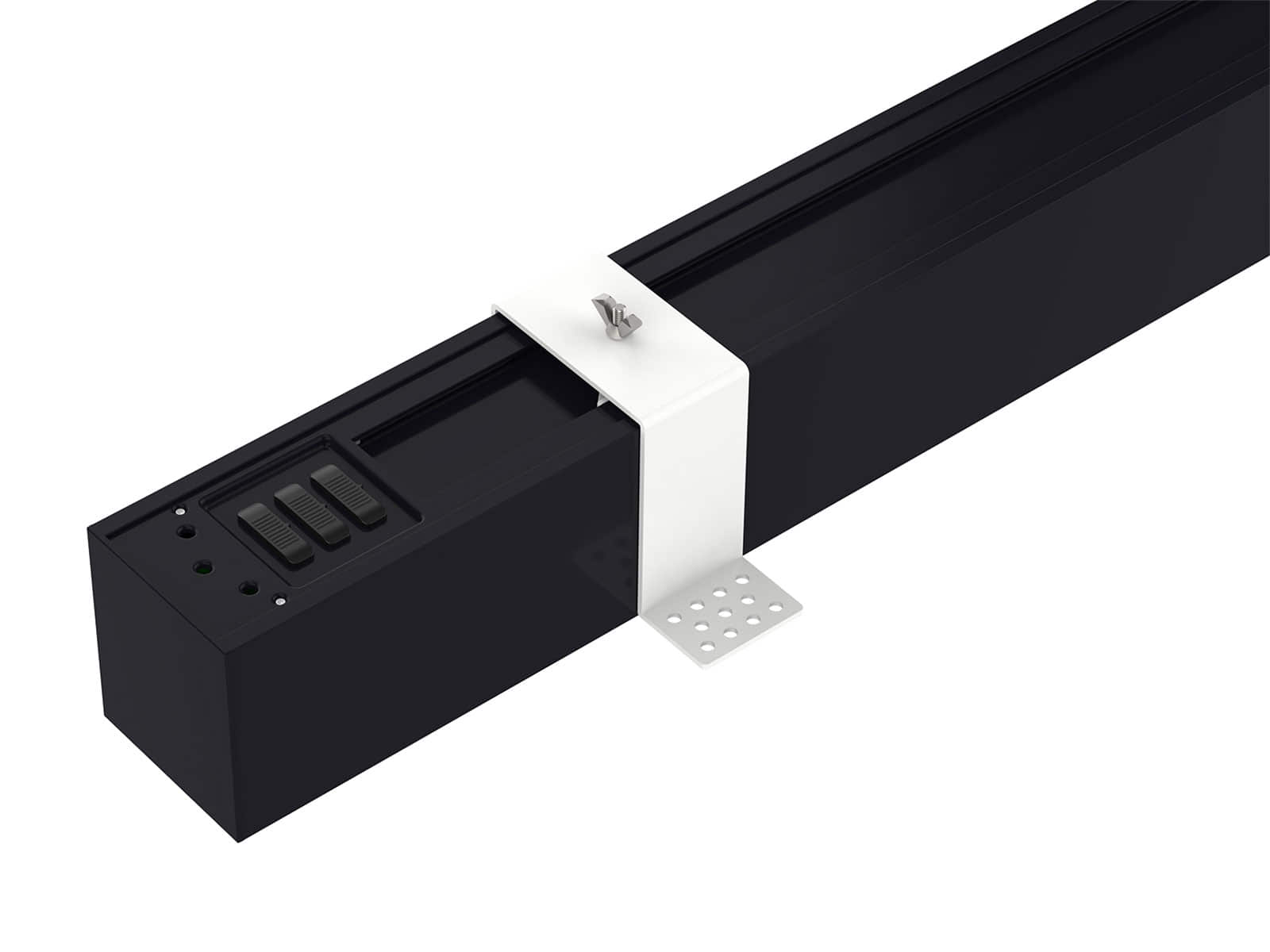

Control CCT of down or uplight individually. Switch from 3500K, 4000K & 5000K.

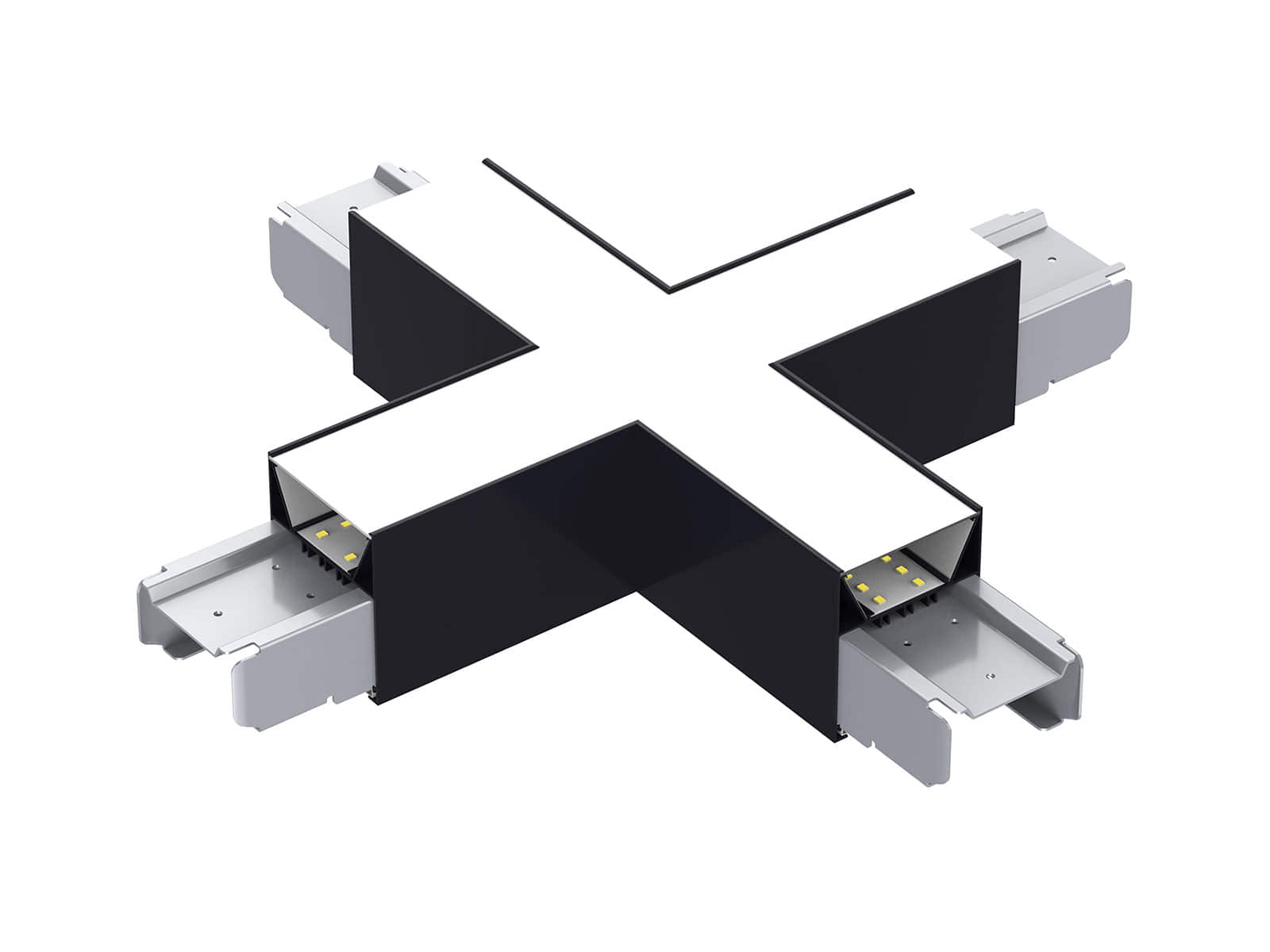

Unique end cap simpliﬁes installation, seamless continuous runs or individuals.

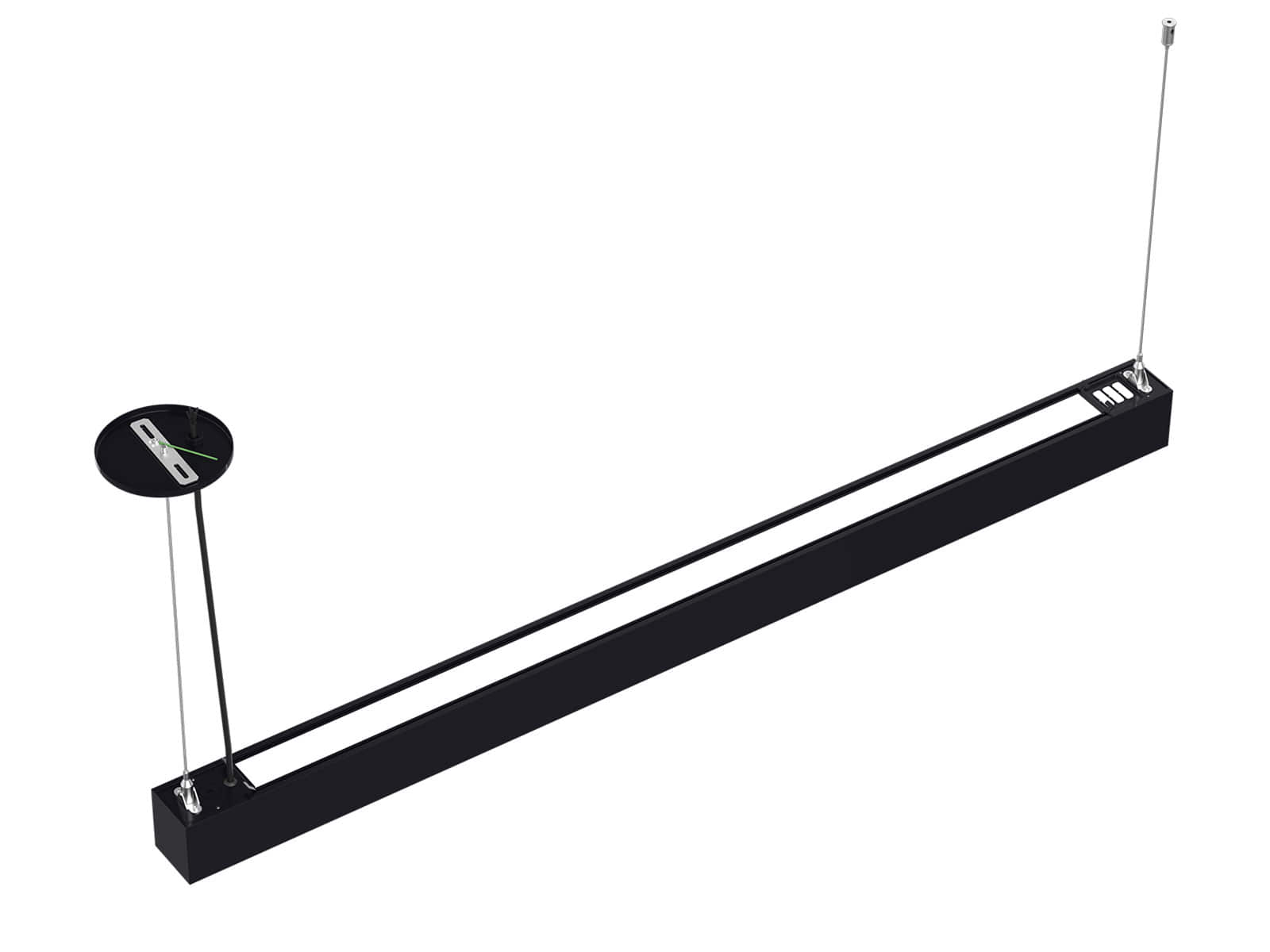

Pendant mounting, surface mounting and wall mounting standard.
White, black and silver ﬁnish for opons.
Sensor and emergency battery backup are available.

Model	Light Distribution	Size	Total Watts	UP	UP Watts	DOWN	DOWN Watts	CCT	Eﬃcacy (LM/W)	Voltage	DIM	CIR	Beam Angle
DB77E-2-24W	100% Down Lighting	2FT	24W	0%	0W	100%	24W	Single CCT 2700K-6500K	110lm/W	AC120-277V AC120-347V	0-10V	80	110°
DB77E-4-36W		4FT	36W	0%	0W	100%	36W
DB77E-4-50W		4FT	50W	0%	0W	100%	50W
DB77E-8-72W		8FT	72W	0%	0W	100%	72W
DB77E-8-100W		8FT	100W	0%	0W	100%	100W
DB77E-2-24W	30% Up & 70% Down	2FT	24W	30%	7W	70%	17W	Single CCT 2700K-6500K	110lm/W	AC120-277V AC120-347V	0-10V	80	110°
DB77E-4-36W		4FT	36W	30%	10W	70%	26W
DB77E-4-50W		4FT	50W	30%	15W	70%	35W
DB77E-8-72W		8FT	72W	30%	22W	70%	50W
DB77E-8-100W		8FT	100W	30%	30W	70%	70W
DB77E-2-24W-A5C3	Adjustable Up & Down Lighting UP: 100% & DOWN: 0% UP: 70% & DOWN: 30% UP: 50% & DOWN: 50% UP: 30% & DOWN: 70% UP: 0% & DOWN: 100%	2FT	24W	100%	24W	0%	0W	UP: 35/40/50K Select Down: 35/40/50K Select	110lm/W	AC120-277V AC120-347V	0-10V	80	110°
				70%	17W	30%	7W
				50%	12W	50%	12W
				30%	7W	70%	17W
				0%	0W	100%	24W
DB77E-4-36W-A5C3		4FT	36W	100%	36W	0%	0W
				70%	26W	30%	10W
				50%	18W	50%	18W
				30%	10W	70%	26W
				0%	0W	100%	36W
DB77E-4-50W-A5C3		4FT	50W	100%	50W	0%	0W
				70%	35W	30%	15W
				50%	25W	50%	25W
				30%	15W	70%	35W
				0%	0W	100%	50W
