LHB12 Linear High Bay Light

LED new linear high bay light is ideal for industrial lighting, warehouses, supermarkets, gymnasiums, and production assembly areas to meet different beam angle needs. Replace existing HID high bay light. Solid state lighting technology for long life, low maintenance, and high efficiency.

  • High efficacy up to 180lm/W.
  • 3CCT(3500/4000/5000K) and Wattages Selectable offer SKU reduction.
  • Low glare with UGR<15.

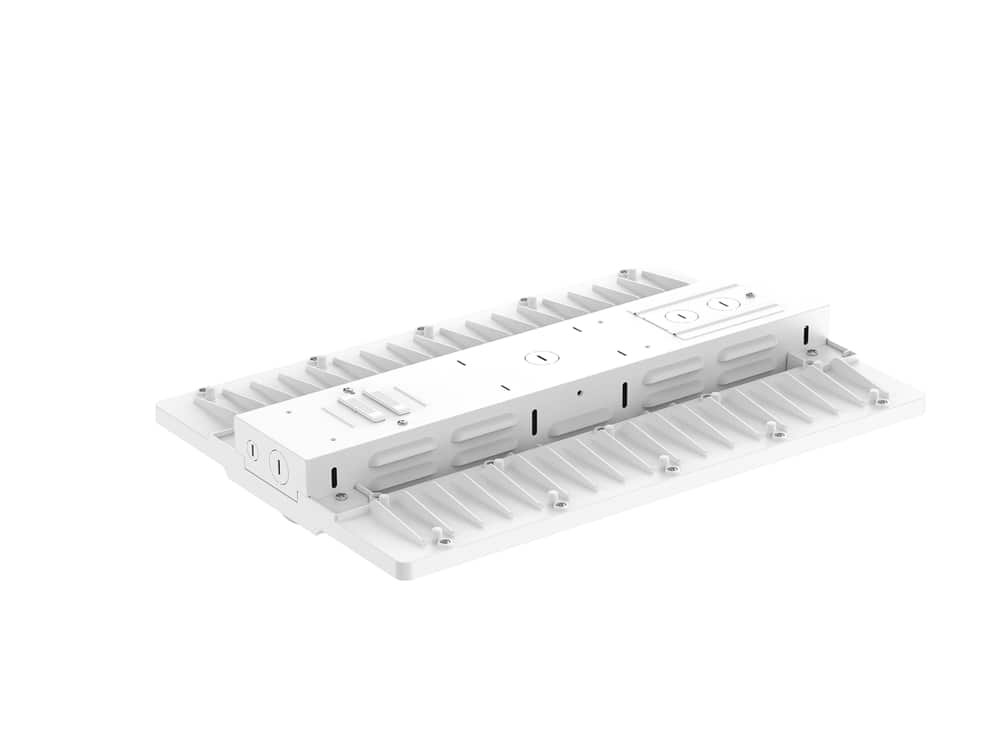

  • Die-cast magnesium housing provides good heat dissipation and a durable lifetime.
  • The driver box features a ventilated window design with heat dissipation holes, enhancing convective cooling.

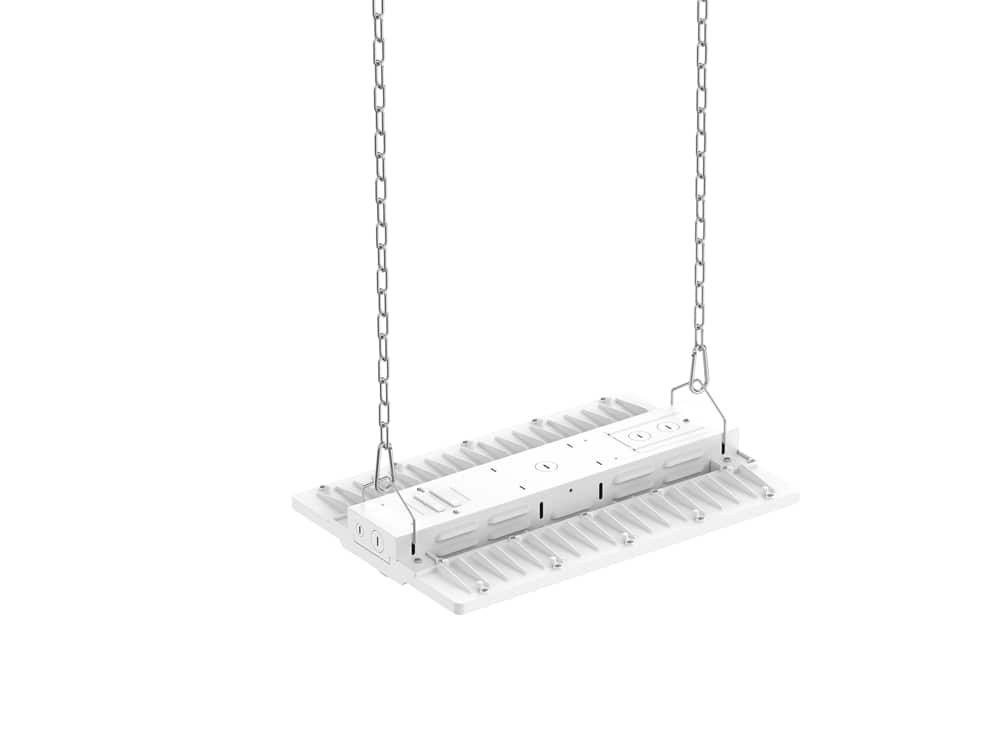

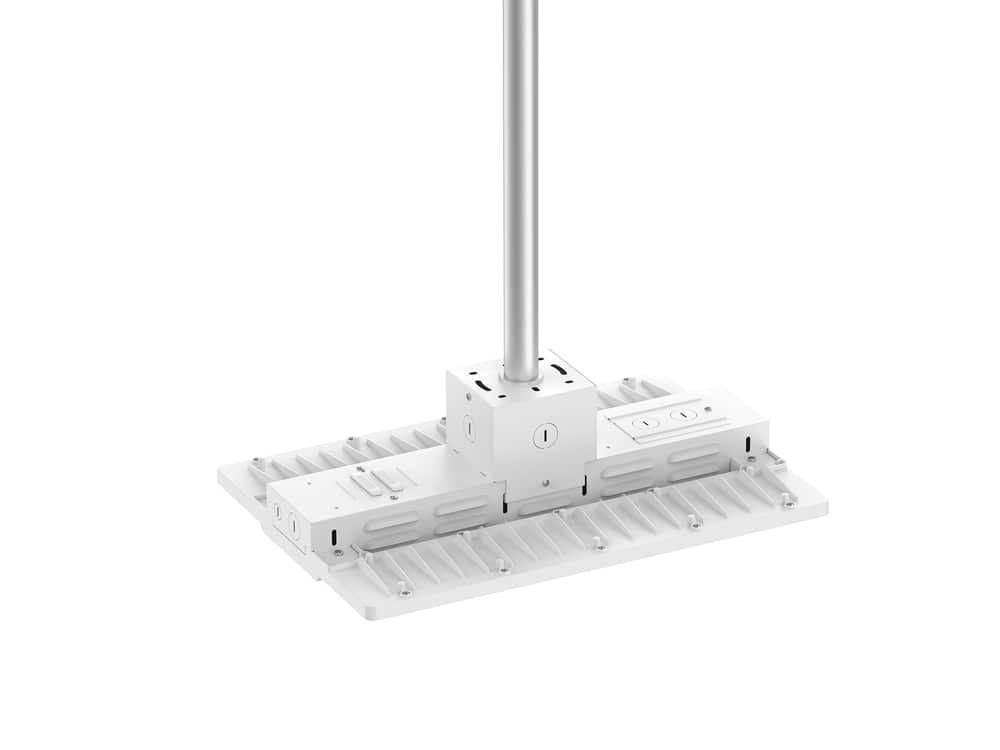

  • Multiple installation ways of Chain Mount, Surface Mount, and Pendant Mount.
  • Includes Zhaga receptacle as standard for easy connection.
  • Microwave motion sensor and PIR sensor available.
  • AC120-277V, AC120-347V, and AC277-480V for options.

Application: Warehouses, Garage, Industrial, Gymnasiums, Manufacturing

Model NO. # Size Watts 3 CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
LHB12-1.3-160Z-AD3C3 1.3FT 160/120/80W Selectable 3CCT
Selectable
3500K
4000K
5000K
180lm/W 28800LM @120W AC120-277V
AC120-347V
AC277-480V
0-10V >80 90°
LHB12-1.4-220Z-AD3C3 1.4FT 220/180/120W Selectable 39600LM @220W
LHB12-1.6-320Z-AD3C3 1.6FT 320/240/160W Selectable 57600LM @320W
