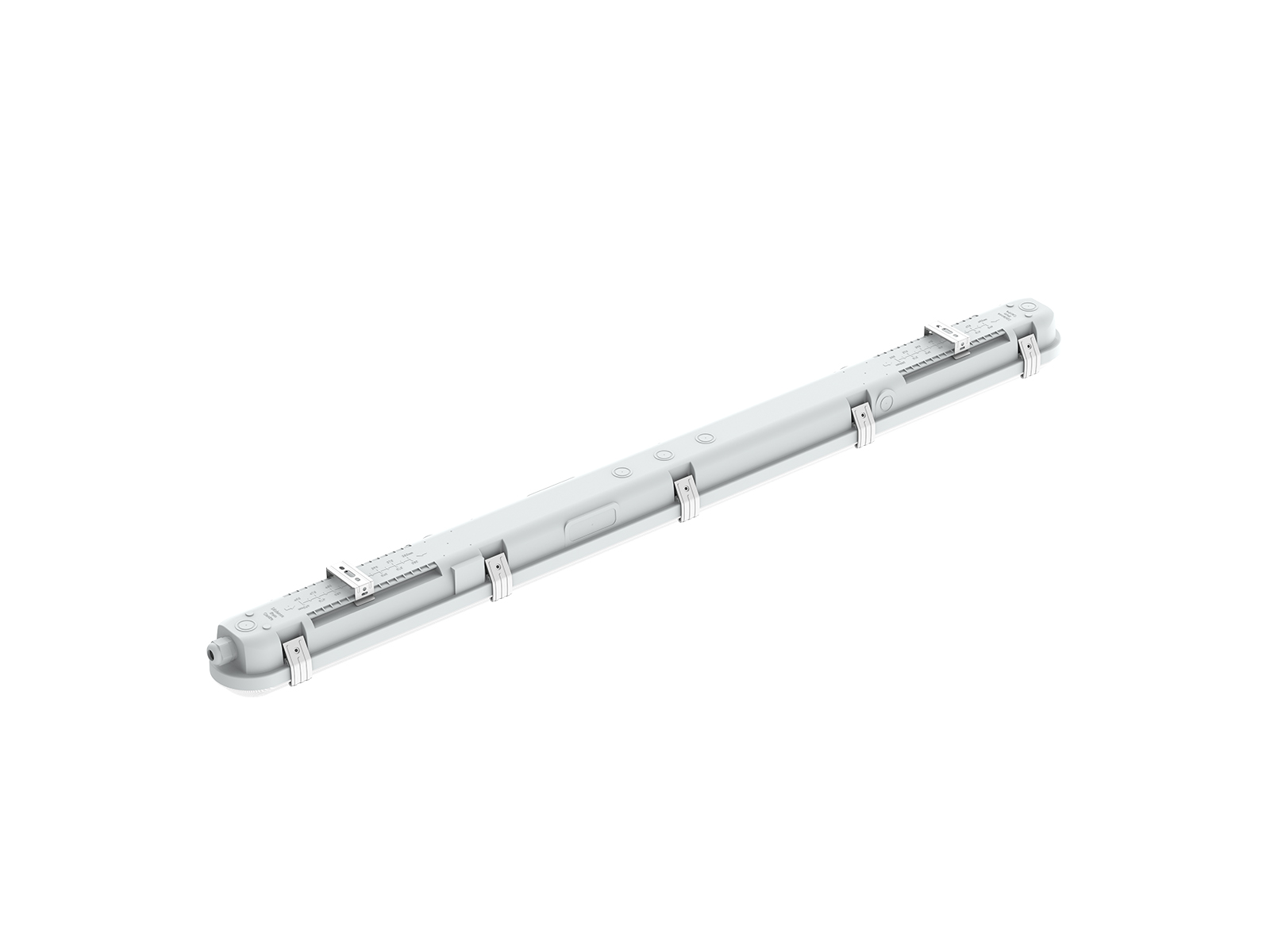

LP05 LED Vapor Tight Light

The vapor tight light is ideal for stairwell & hallways, vandal proof or harsh weather, parking garage and store applications. Comes with a 3 CCT &  wattage DIP switches which allows the customer to choose the most suitable color temperature and lumens output projects. Housing constructed of military-grade polycarbonate, with impact resistance three times higher than that of ordinary polycarbonate makes it very durable.

  • High efficacy up to 150lm/W.

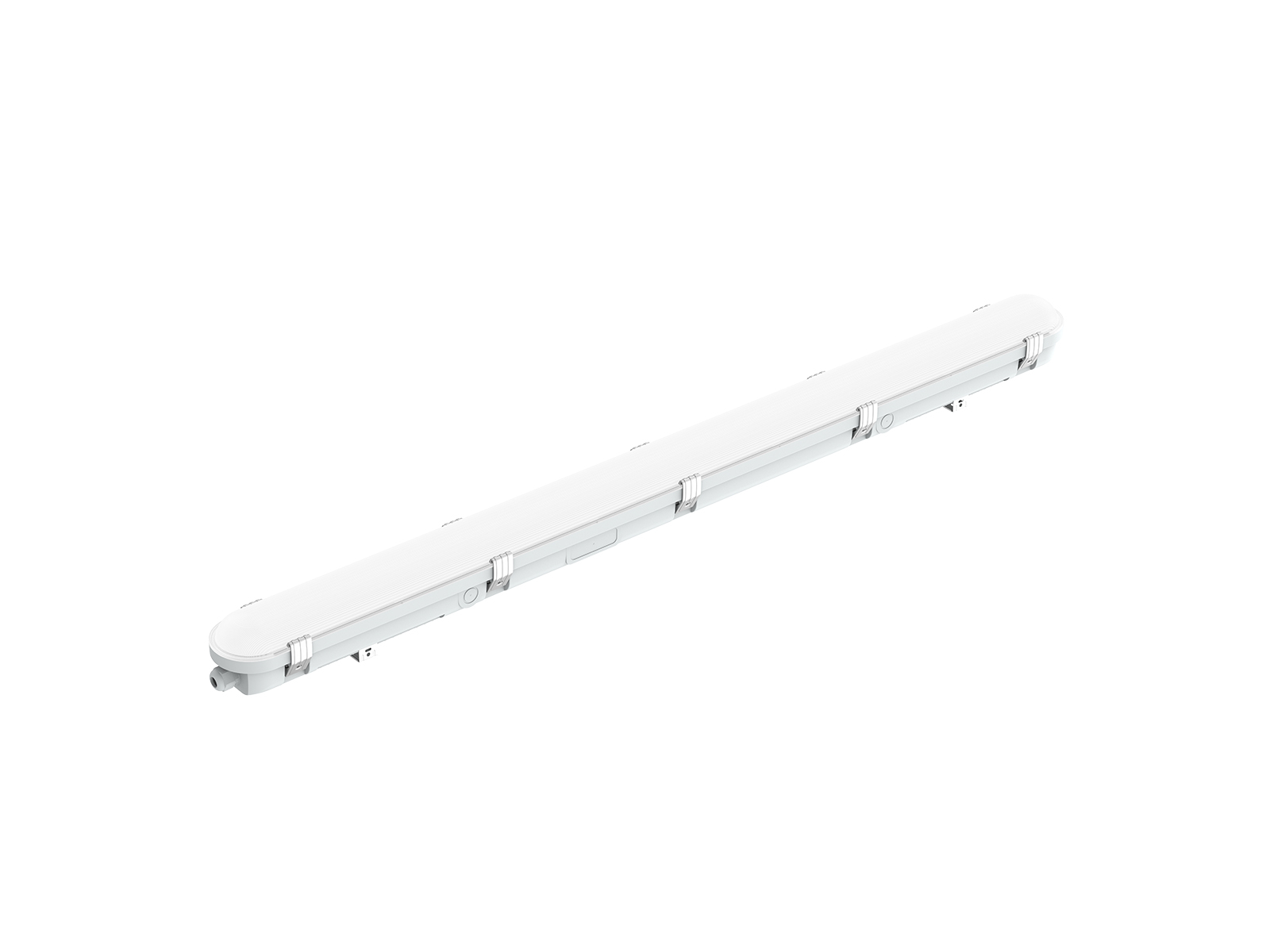

  • 3CCT(3500/4000/5000K) and 3 Wattages Selectable offer SKU reduction.
  • Stainless steel, tamper resistant lens clips.
  • Smooth, diffused, impact-resistant polycarbonate lens provides an even lighting distribution, UV resistance.
  • Microwave motion sensor and emergency driver available(not available for LP05A-2FT).

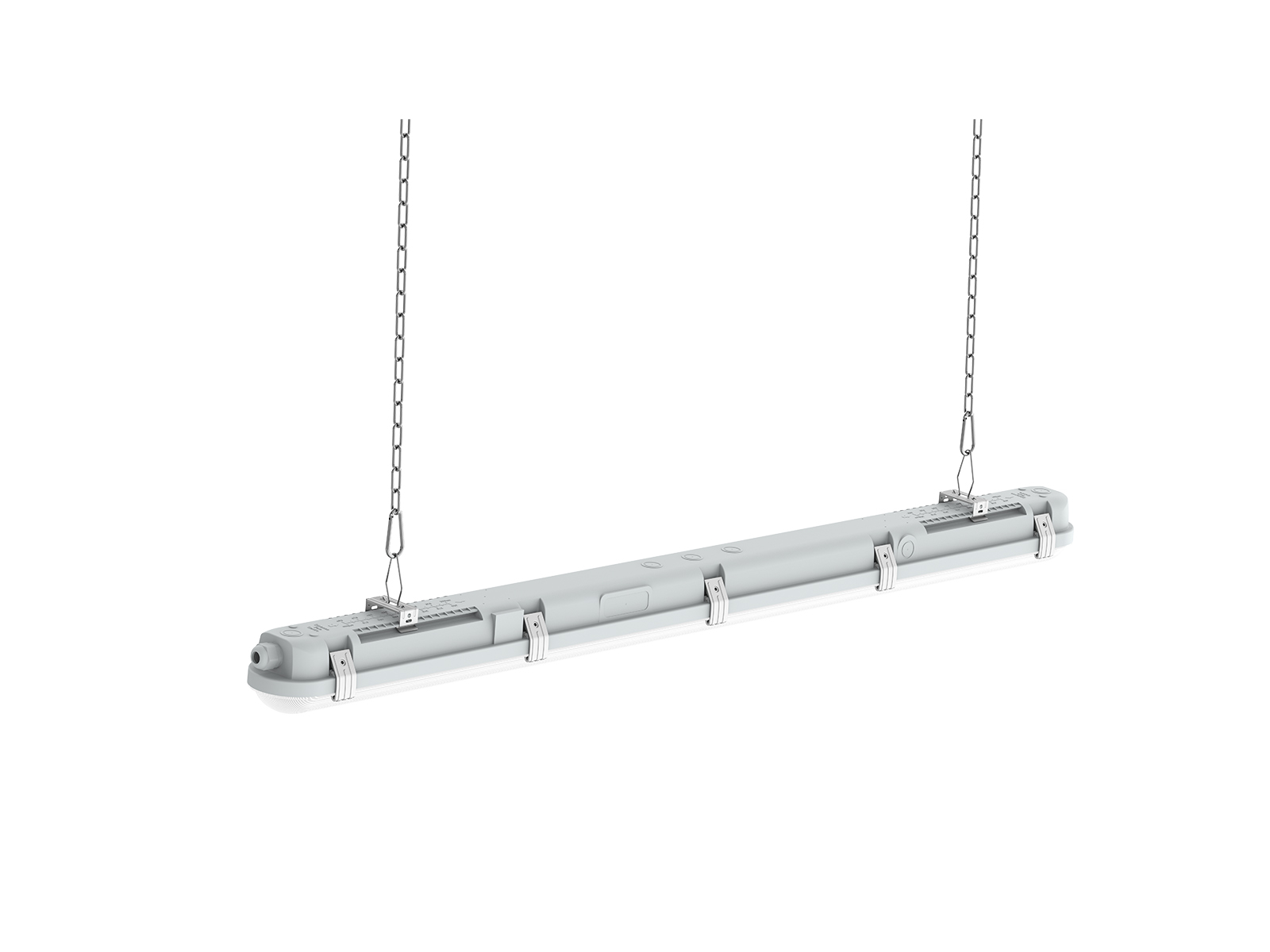

  • Surface mount and chain mount available.
  • Waterproof IP66.

Application: Stairwell & Hallways, Vandal Proof or Harsh Weather, Utility & Storage, Garage Structures, Commercial and Industrial

Model NO. # Size Watts 3 CCT LPW Lumens(±10%) Voltage DIM CRI Beam Angle
LP05A-2-25Z-AD3C3 2FT 25/20/15W
Selectable
3CCT
Selectable
3500k
4000K
5000K
150lm/W 3750LM @25W AC120-277V
AC120-347V
0-10V >80 120°
LP05A-4-45Z-AD3C3 4FT 45/30/20W
Selectable
6750LM @45W
LP05A-8-100Z-AD3C3 8FT 100/80/60W
Selectable
15000LM @100W
LP05B-4-75Z-AD3C3 4FT 75/65/45W
Selectable
11250LM @75W
