WP33 LED Architectural Wall Pack

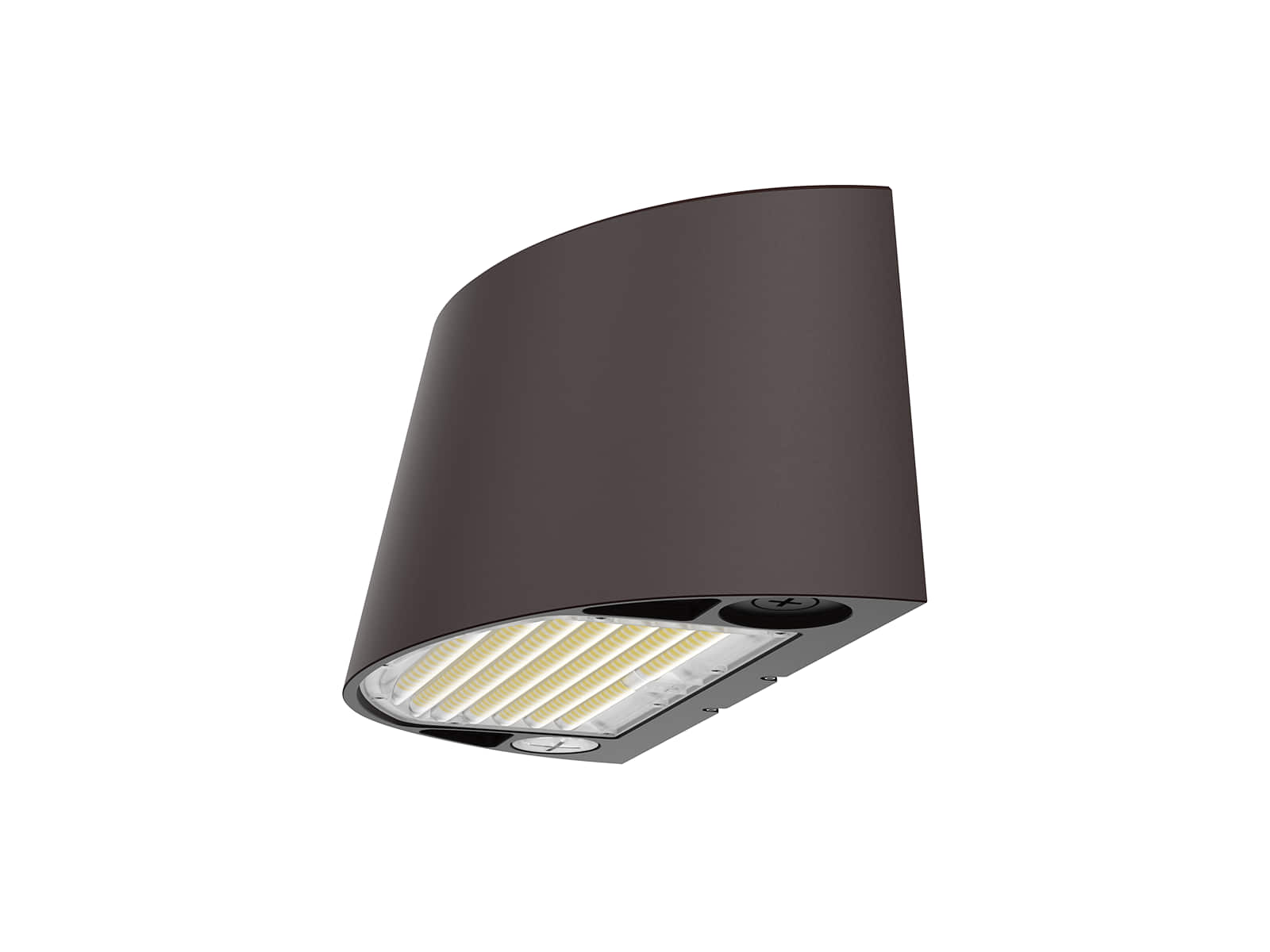

RZ's new LED wall packs are your first choice for wall-mounted lighting projects. Three geometric shapes: Trapezoid, Quartersphere and Radius available for different environment. 4 IN 1 switch is selectable for lighting direction, CCT, wattage, and photocell ON/OFF control. D2D photocell can automatically turn off at sunrise or during the day, and automatically light up at sunset or night.

High efficacy up to 150lm/W.
3CCT(3000/4000/5000K) and 4 Wattages Selectable offer SKU reduction.
AC120-277V & AC120-347V for options.

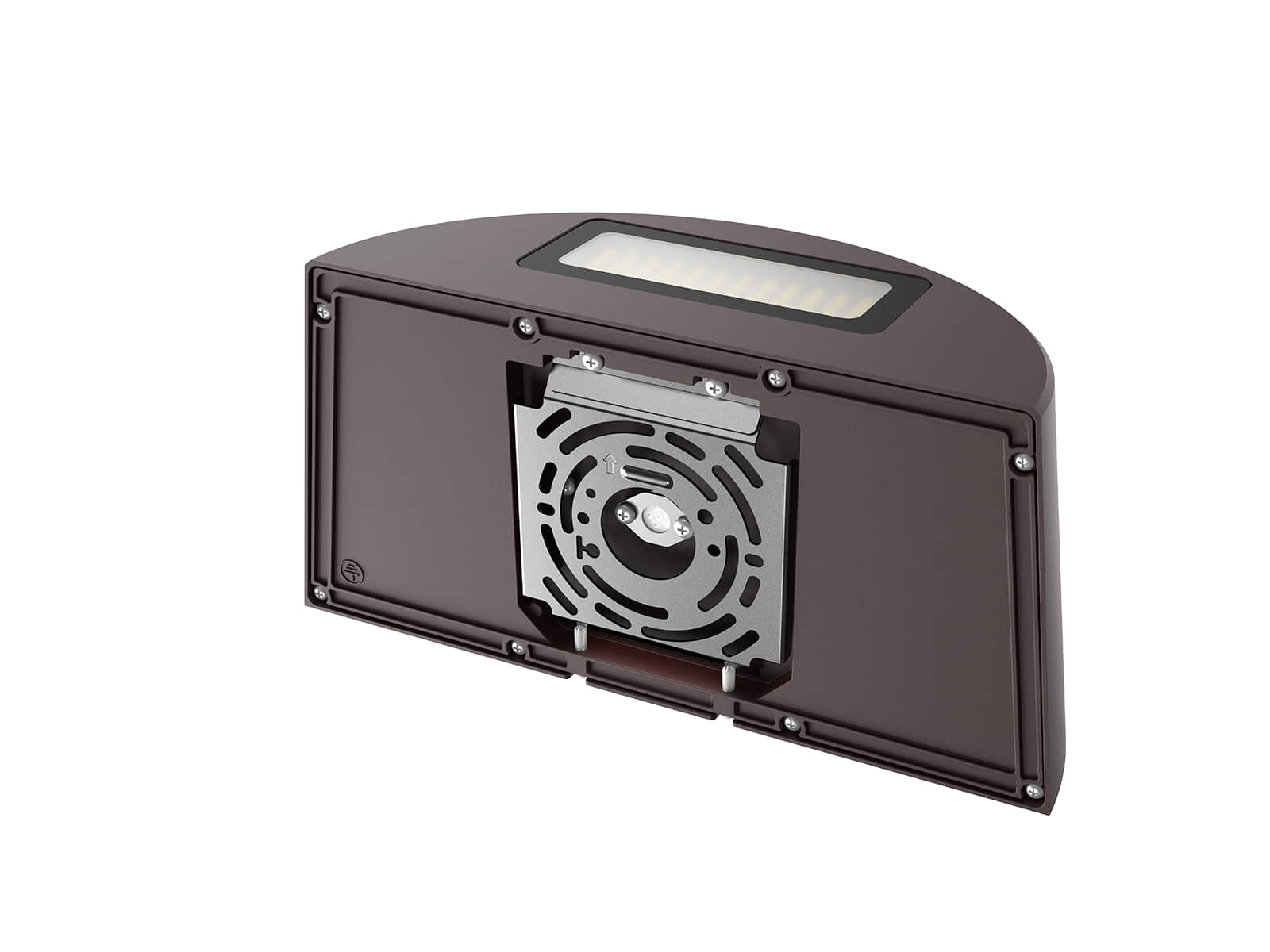

DIP switch for Full, Down lighting modes.
ADC12 Aluminum die-casting housing provides excellent heat dissipation.
Automated Dusk to Dawn photocell functionality.

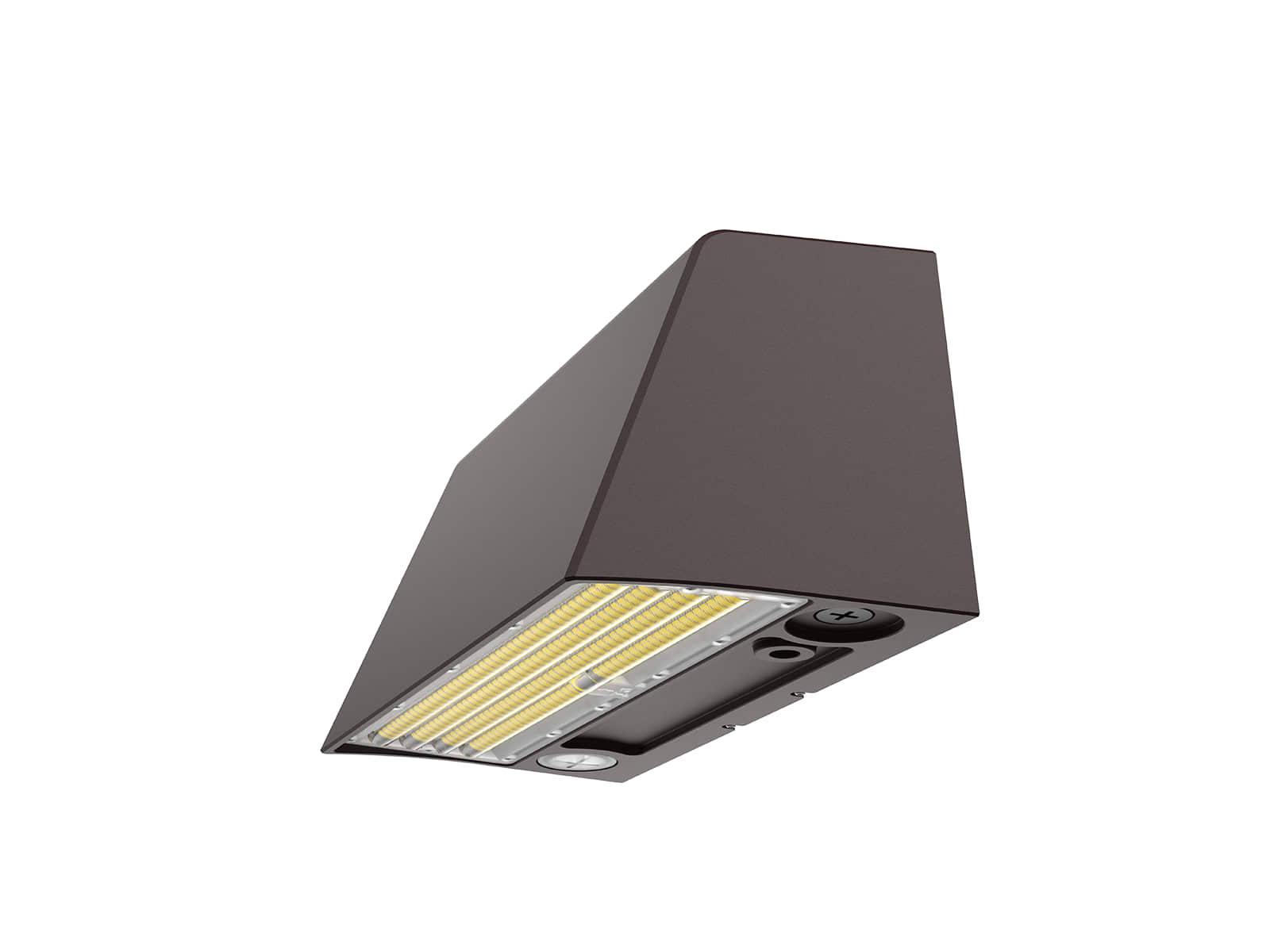

Microwave motion sensor and emergency driver available.
Waterproof rated IP65.

Application: Pathways, Hospitality, Walkways, Hallways, Outdoor Commercial, Outdoor Residential

Model NO. #	Size	Watts	3 CCT	LPW	Lighting Direction	Voltage	Dim	CRI	Beam Angle
WP33T-13-40Z-AD4C3	13"	40/30/20/15W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	UP & Down Lighting Down Lighting Selectable	AC120-277V AC120-347V	0-10V	>80	Type III
WP33T-13-80Z-AD4C3		80/60/50/40W Selectable
WP33T-13-120Z-AD4C3		120/100/90/60W Selectable
WP33R-13-40Z-AD4C3	13"	40/30/20/15W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	UP & Down Lighting Down Lighting Selectable	AC120-277V AC120-347V	0-10V	>80	Type III
WP33R-13-80Z-AD4C3		80/60/50/40W Selectable
WP33R-13-120Z-AD4C3		120/100/90/60W Selectable
WP33Q-13-40Z-AD4C3	13"	40/30/20/15W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	Down Lighting	AC120-277V AC120-347V	0-10V	>80	Type III
WP33Q-13-80Z-AD4C3		80/60/50/40W Selectable
WP33Q-13-120Z-AD4C3		120/100/90/60W Selectable
