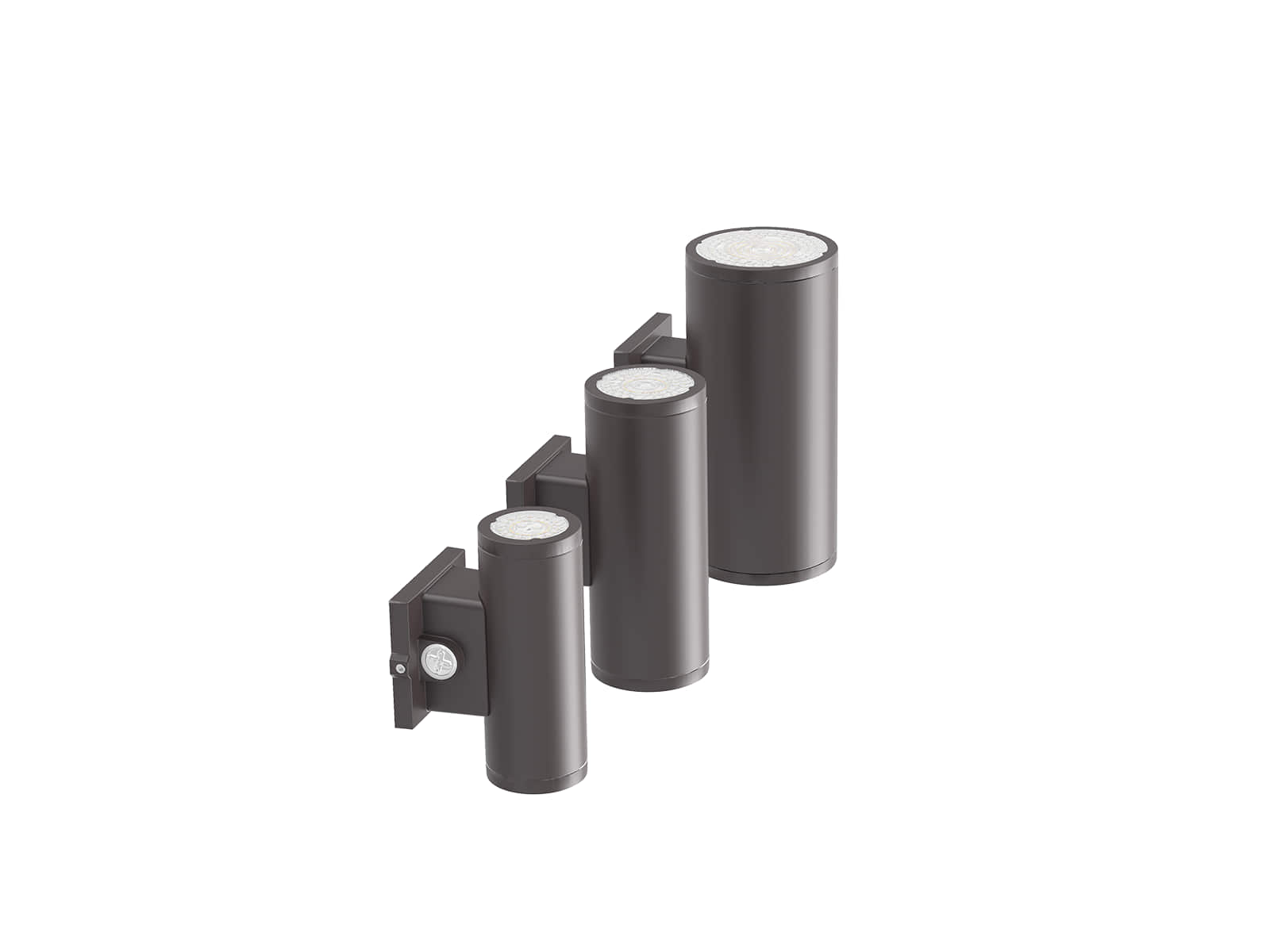

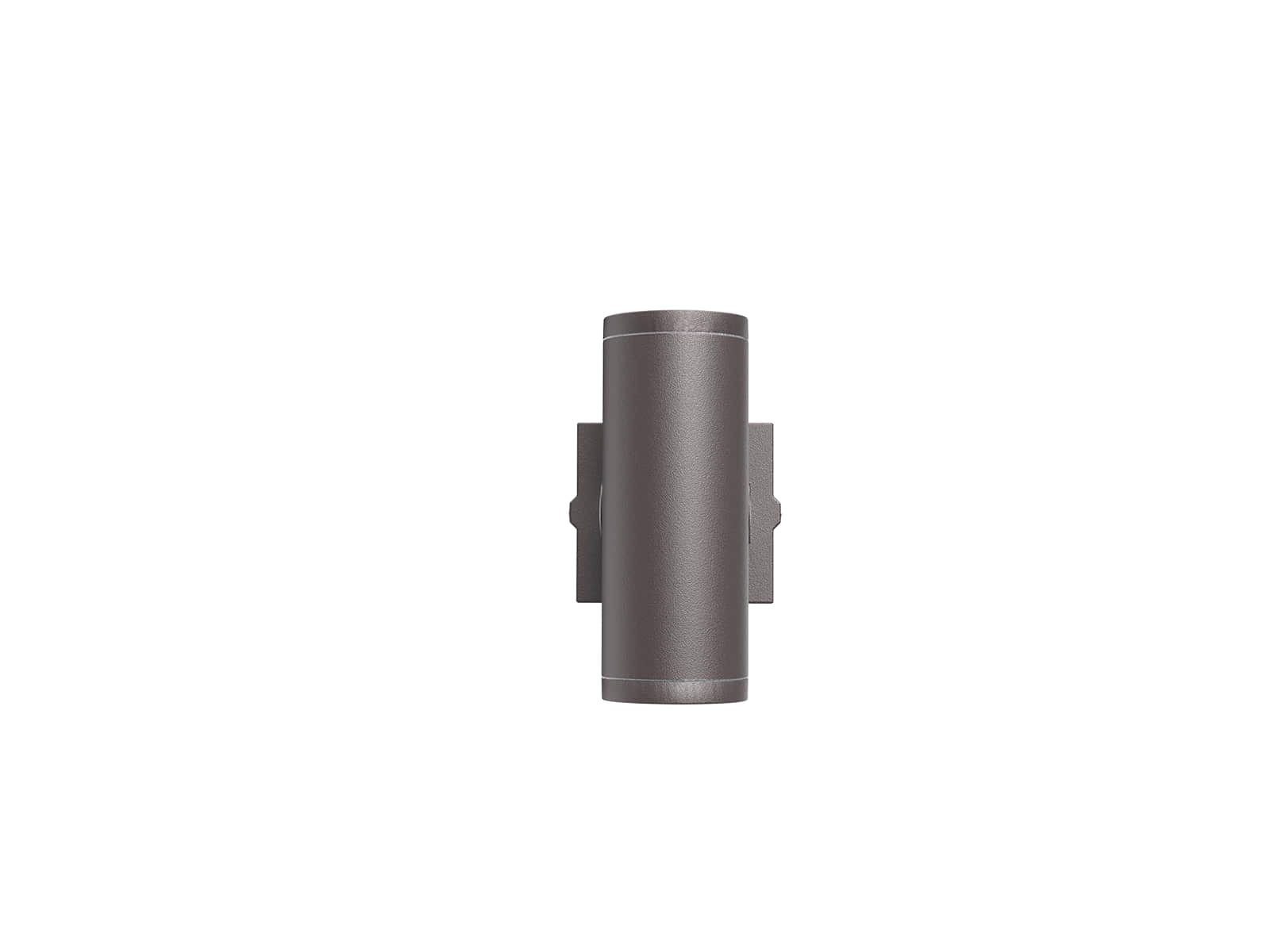

WP29 LED Wall Mount Cylinder

RZ LED Wall Mount Cylinder is Opti-select Cylinders offer 3 CCT, 3 wattages, 3 beam angles and 3 light modes in only one SKU. D2D photocell can automatically turn off at sunrise or during the day, and automatically light up at sunset or night. It is a highly efficient lighting solution that provides long-lasting and energy-saving. An innovative and flexible wall fixture ideal for facades, entryways and wall washing.

Innovative Optic Selectable capability accomplished 3 different beam angle (25°/40°/60°) in one fixture.
DIP switch for Up, Full, Down lighting modes.
Standard dusk to dawn Photocell On/Off switch.
3CCT(3000/4000/5000K) and Wattages Selectable offer SKU reduction.

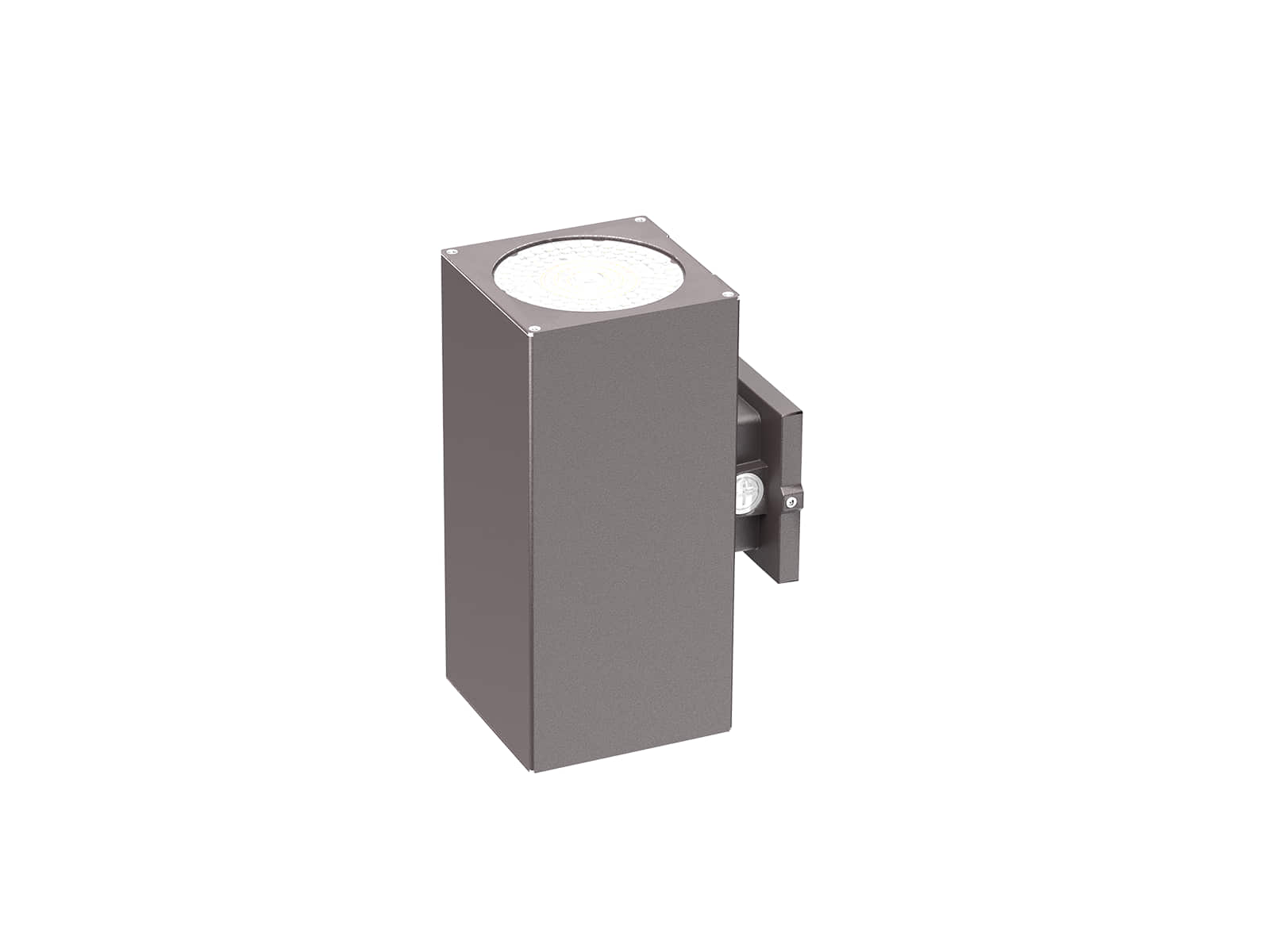

Square shell accessory available.
Die casting Aluminum housing provide excellent heat dissipation.
Waterproof IP65 rated, wet location.

Application: Entryway, Awning, Facade, Wall washer

Model NO. #	Size	Input Watts	Lighting Direction		CCT	LPW	Voltage	DIM	CRI	Beam Angle
Model NO. #	Size	Input Watts	UP watts	Down watts	CCT	LPW	Voltage	DIM	CRI	Beam Angle
WP29-3-10M-S2D3C3	3	10/8/6W Selectable	10/8/6W	0W	3CCT Selectable 4000K 5000K	125lm/W	120-347V	0-10V	>80	25/40/60° Selectable
			5/4/3W	5/4/3W
			0W	10/8/6W
WP29-4-20M-S2D3C3	4	20/16/12W Selectable	20/16/12W	0W	3CCT Selectable 3000K 4000K 5000K	125lm/W	120-347V	0-10V	>80	25/40/60° Selectable
			10/8/6W	10/8/6W
			0W	20/16/12W
WP29-6-36M-S2D3C3	6	36/28/21W Selectable	36/28/21W	0W	3CCT Selectable 3000K 4000K 5000K	125lm/W	120-347V	0-10V	>80	25/40/60° Selectable
			18/14/10.5W	18/14/10.5W
			0W	36/28/21W
