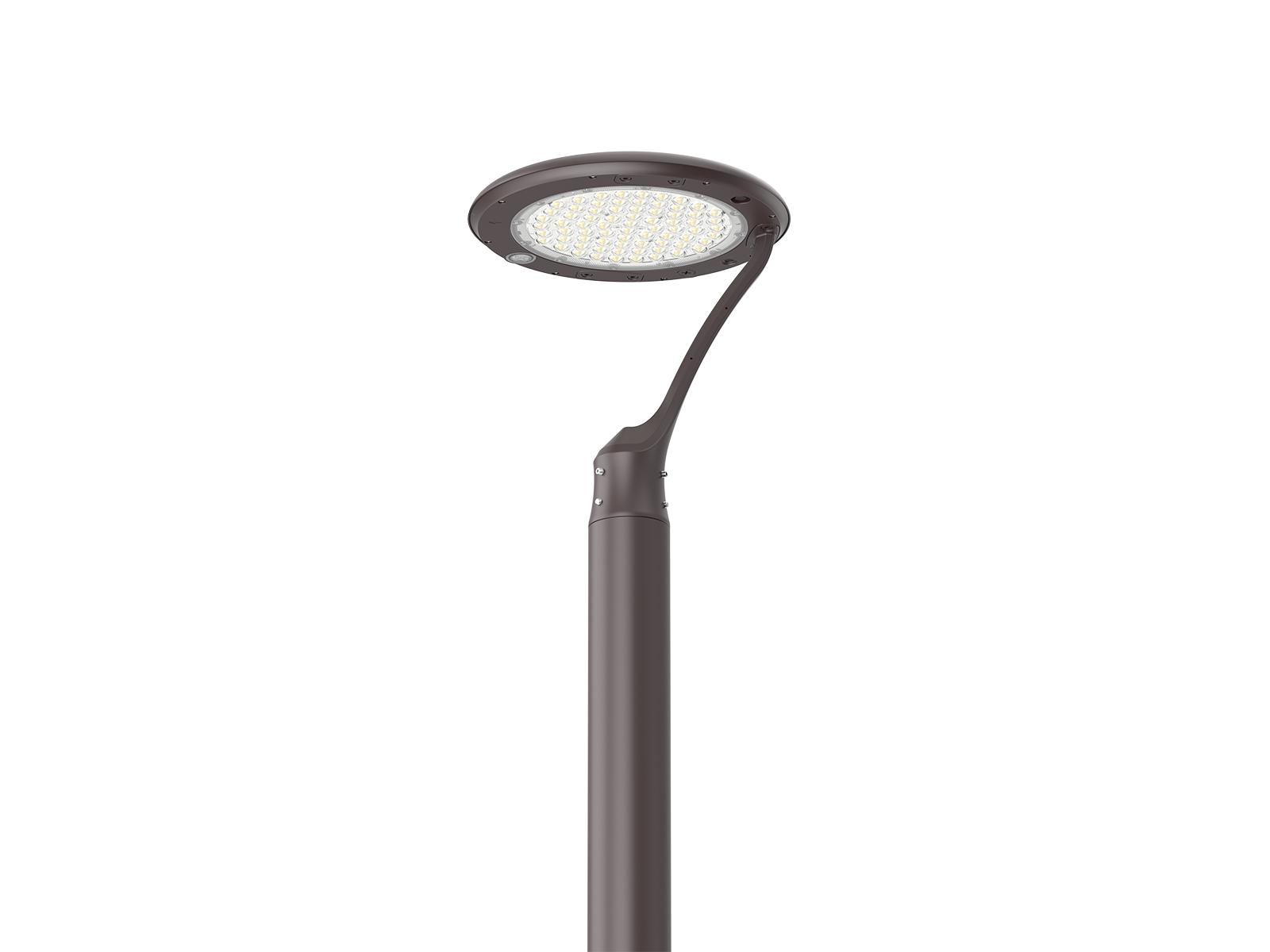

PT02 LED Post Top Light

RZ LED Post Top is perfect for Area Lighting and new construction applications in industrial outdoor applications, such as gardens, roads, pathways, and outdoor applications. Photocell and motion sensor available. A 3CCT & 4Wattage  DIP switch helps the customer save SKUs. Innovative field optical- select capability accomplished by one integrated lens.

  • Innovative Optic Selectable capability accomplished 3 different distribution (T3/T4/T5) in one fixture.

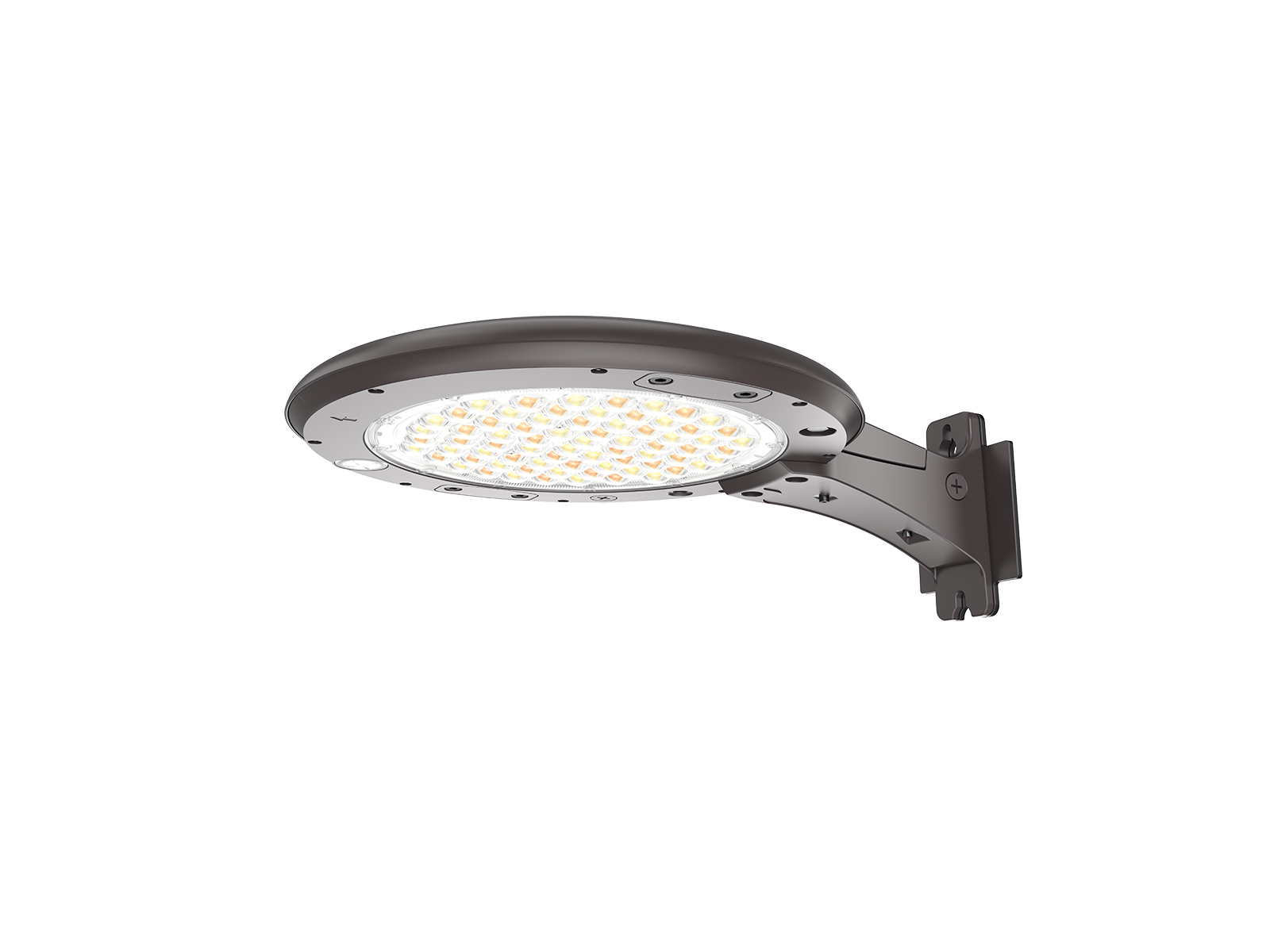

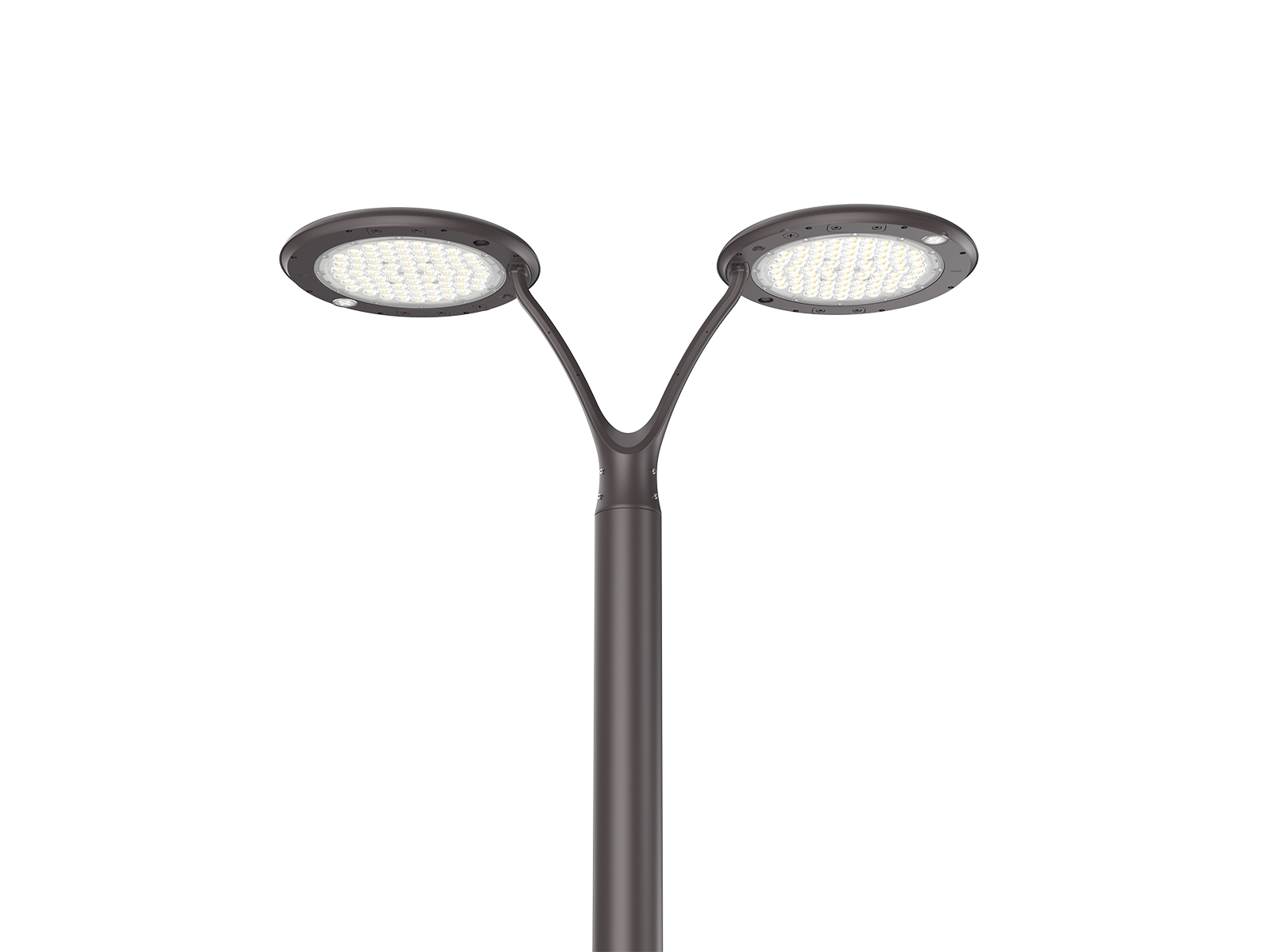

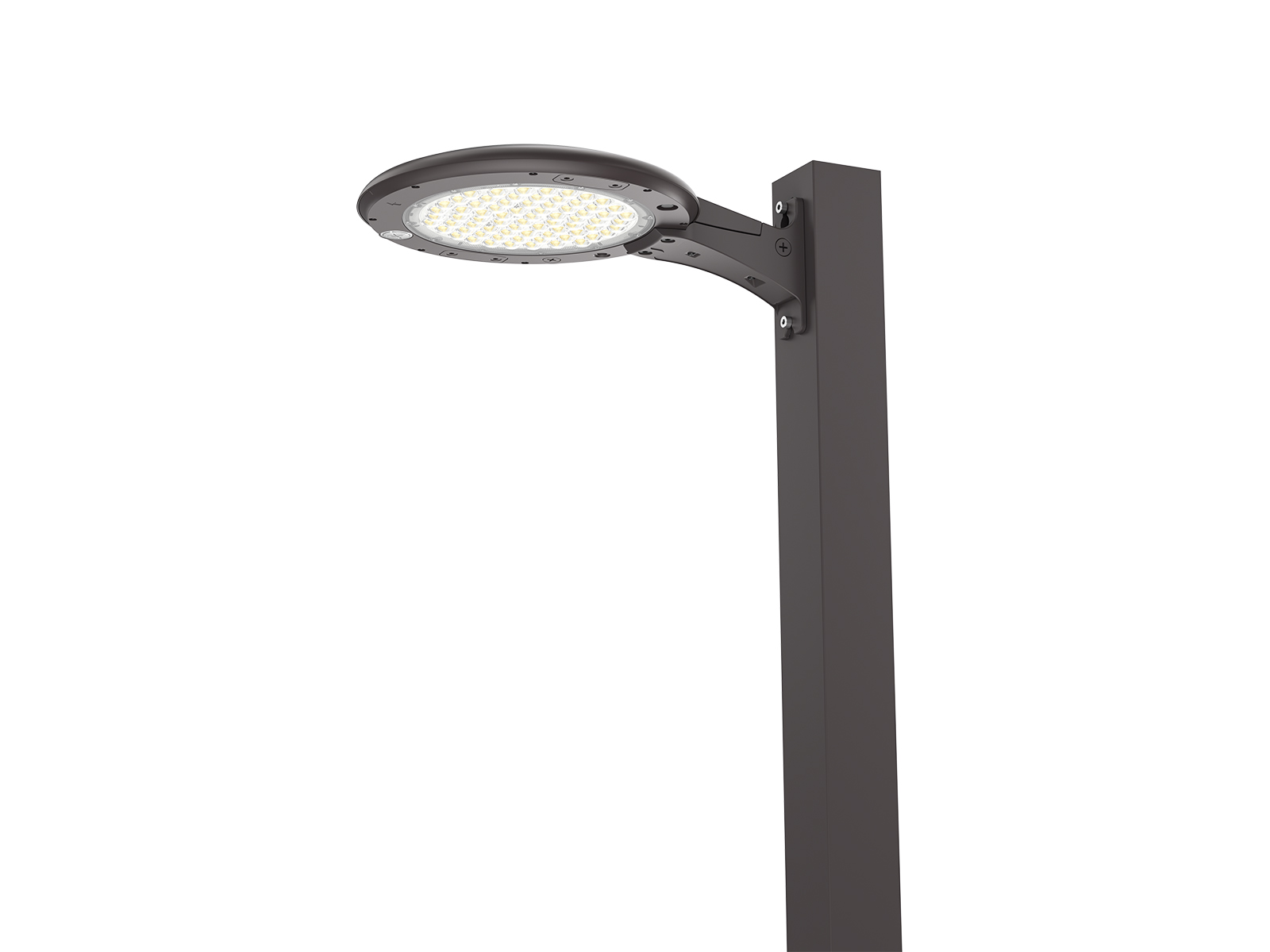

  • Five mounting brackets allow pole mount, wall mount, pole mount(Single arm), ceiling mount, and direct mount installations.
  • High efficacy up to 180lm/W.
  • 3CCT(3000/4000/5000K) and 4 Wattages Selectable offer SKU reduction.
  • Automated Dusk to Dawn photocell functionality.
  • Plug-in and Zhaga socket microwave motion sensor available.
  • Emergency driver available.

Application: Gardens, Roads, Pathways, Outdoor Residential, Outdoor Commercial

Model NO. # Size Watts CCT LPW Voltage DIM CRI Distribution
PT02-16-80Z-AD4C3OSF 16" 80/60/50/40W Selectable 3000/4000/5000K
Selectable
165lm/W AC120-277V
AC120-347V
0-10V >70 T3/T4/T5
Selectable
PT02-16-135Z-AD4C3OSF 135/100/80/60W Selectable
PT02-16-80Z-AD4C3T5F 16" 80/60/50/40W Selectable 180lm/W T5
PT02-16-135Z-AD4C3T5F 135/100/80/60W Selectable
PT02-16-80Z-AD4C3T3F 16" 80/60/50/40W Selectable T3
PT02-16-135Z-AD4C3T3F 135/100/80/60W Selectable
