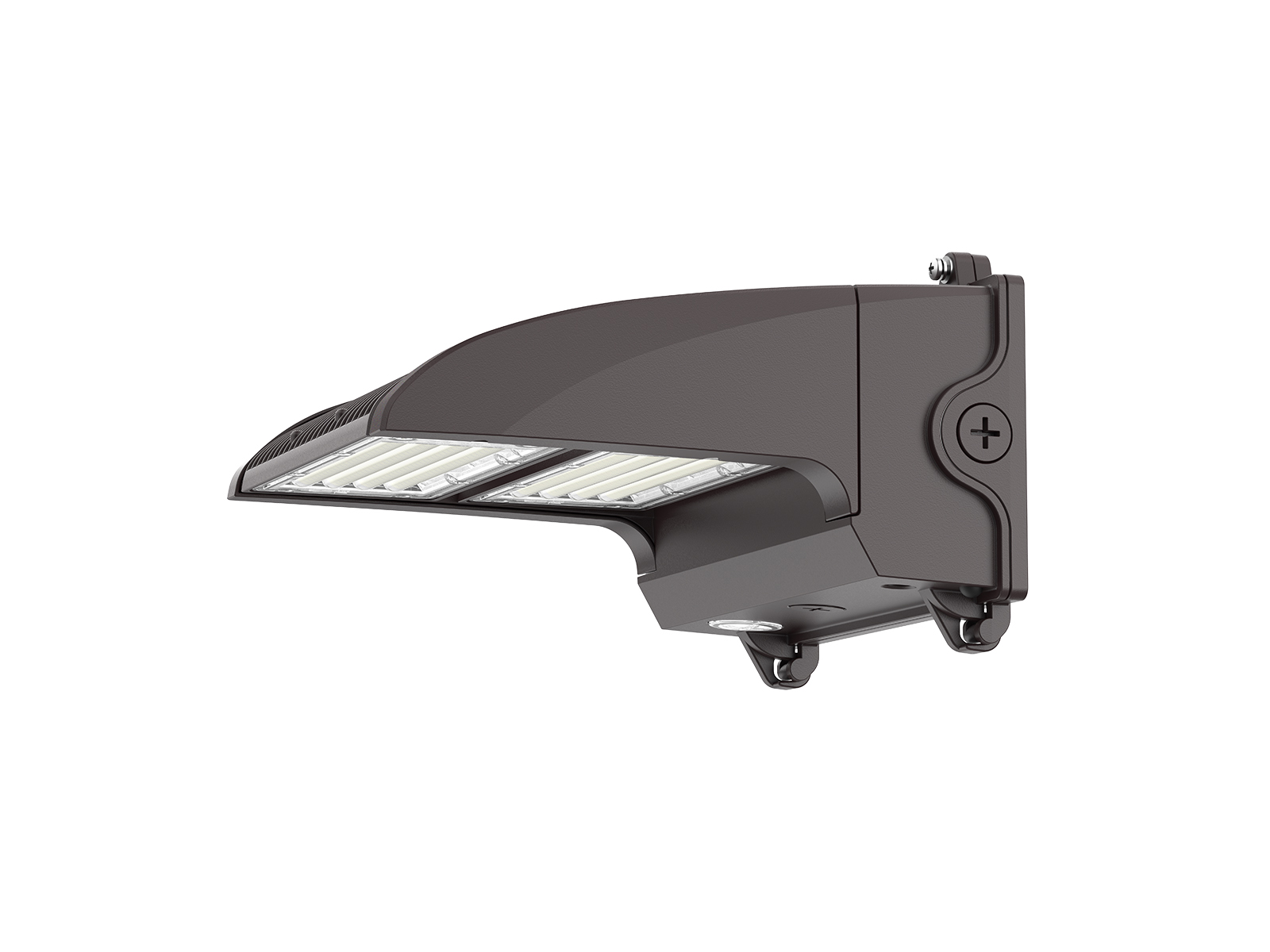

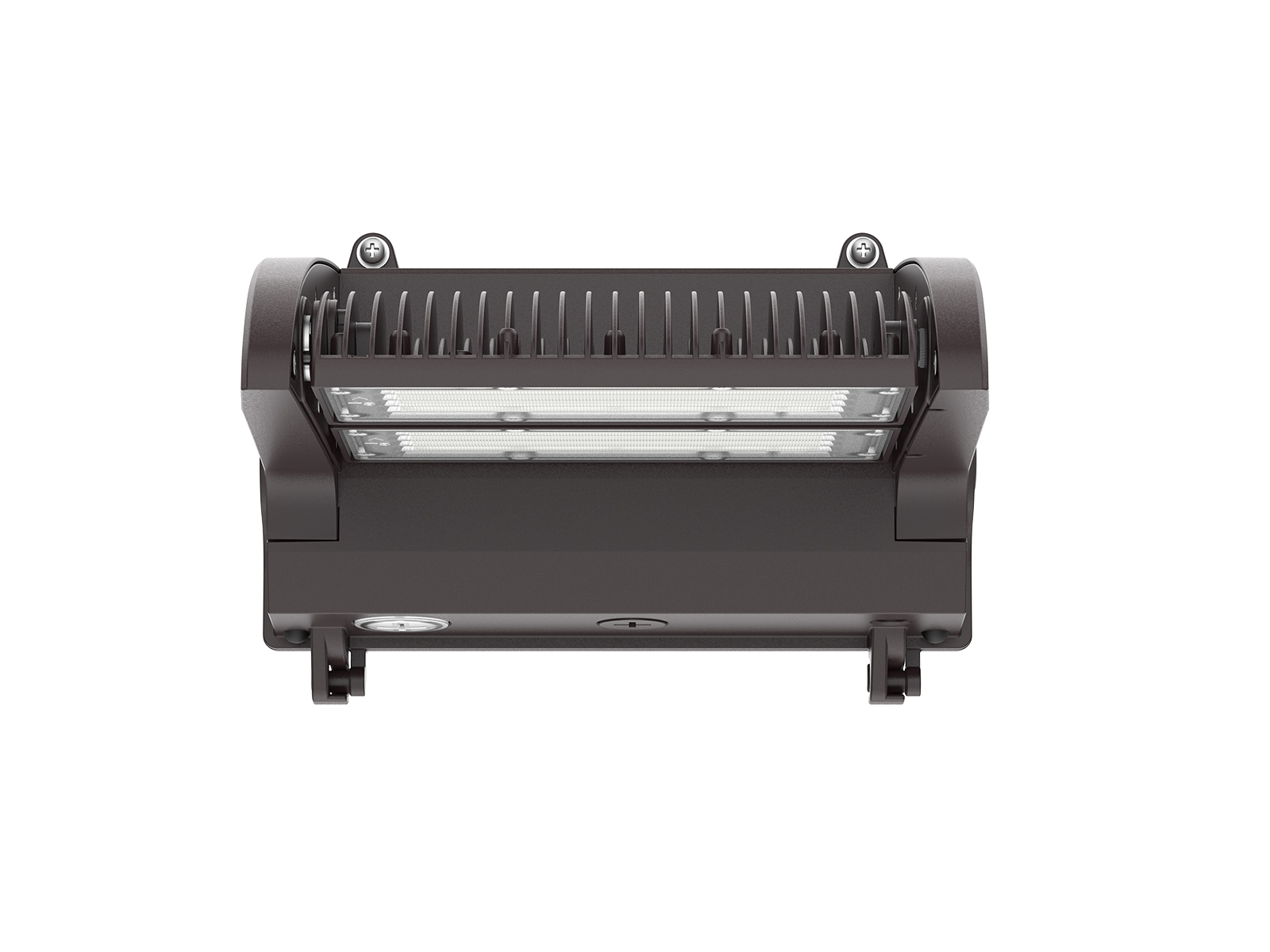

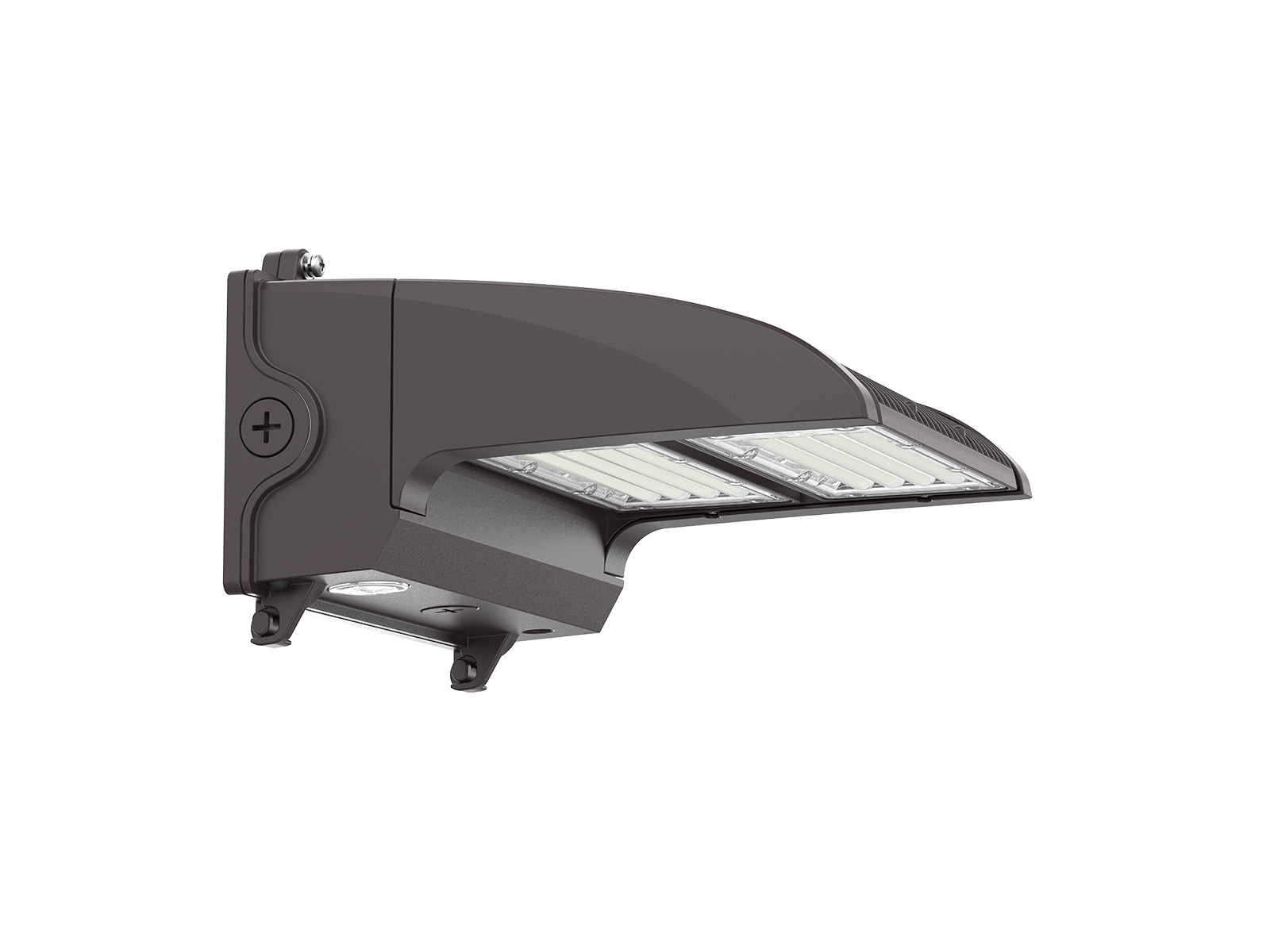

WP32 LED Rotating Wall Pack Light

RZ's new LED adjustable wall packs are your first choice for wall-mounted lighting projects. Adjustable -15 to 210 degrees beam angles meet different needs. 3 IN 1 switch is selectable for CCT, wattage, and photocell ON/OFF control. D2D photocell can automatically turn off at sunrise or during the day, and automatically light up at sunset or night. It is a highly efficient lighting solution that provides long-lasting and energy-saving.

High efficacy up to 150 lm/W.
3CCT(3000/4000/5000K) and 4 Wattages Selectable offer SKU reduction.
AC120-277V & AC120-347V for options.
Tooless rotating head from -15° to 210°, suitable for illuminating specific areas.
ADC12 Aluminum die-casting housing provides excellent heat dissipation.
Automated Dusk to Dawn photocell functionality.
Microwave motion sensor and emergency driver available.
Waterproof rated IP65.

Application: Walkways & Pathways, Parking Lots, Landscape Lighting, Outdoor Commercial, Outdoor Residential

Model NO. #	Size	Watts	3 CCT	LPW	Lumens(±10%)	Voltage	DIM	CRI	Beam Angle
WP32S-9-40Z-AD4C3	9"	40/30/20/15W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	6000LM@40W	AC120-277V AC120-347V	0-10V	>80	Type III
WP32S-9-60Z-AD4C3	9"	60/50/40/30W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	9000LM@60W	AC120-277V AC120-347V	0-10V	>80	Type III
WP32D-9-80Z-AD4C3	9"	80/60/50/40W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	12000LM@80W	AC120-277V AC120-347V	0-10V	>80	Type III
WP32D-9-120Z-AD4C3	9"	120/100/80/60W Selectable	3CCT Selectable 3000K 4000K 5000K	150lm/W	18000LM@120W	AC120-277V AC120-347V	0-10V	>80	Type III

WP32 LED Rotating Wall Pack Light
