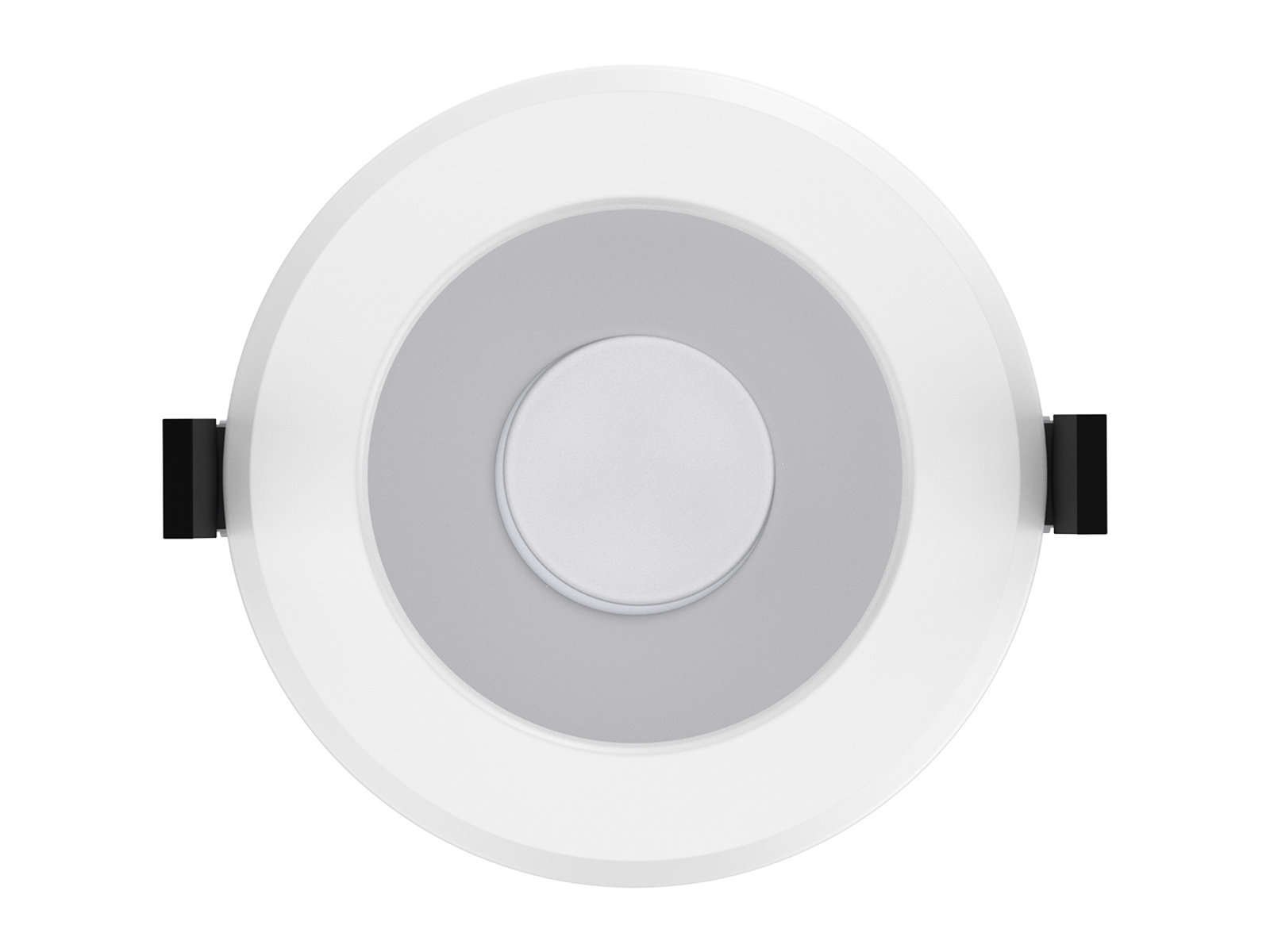

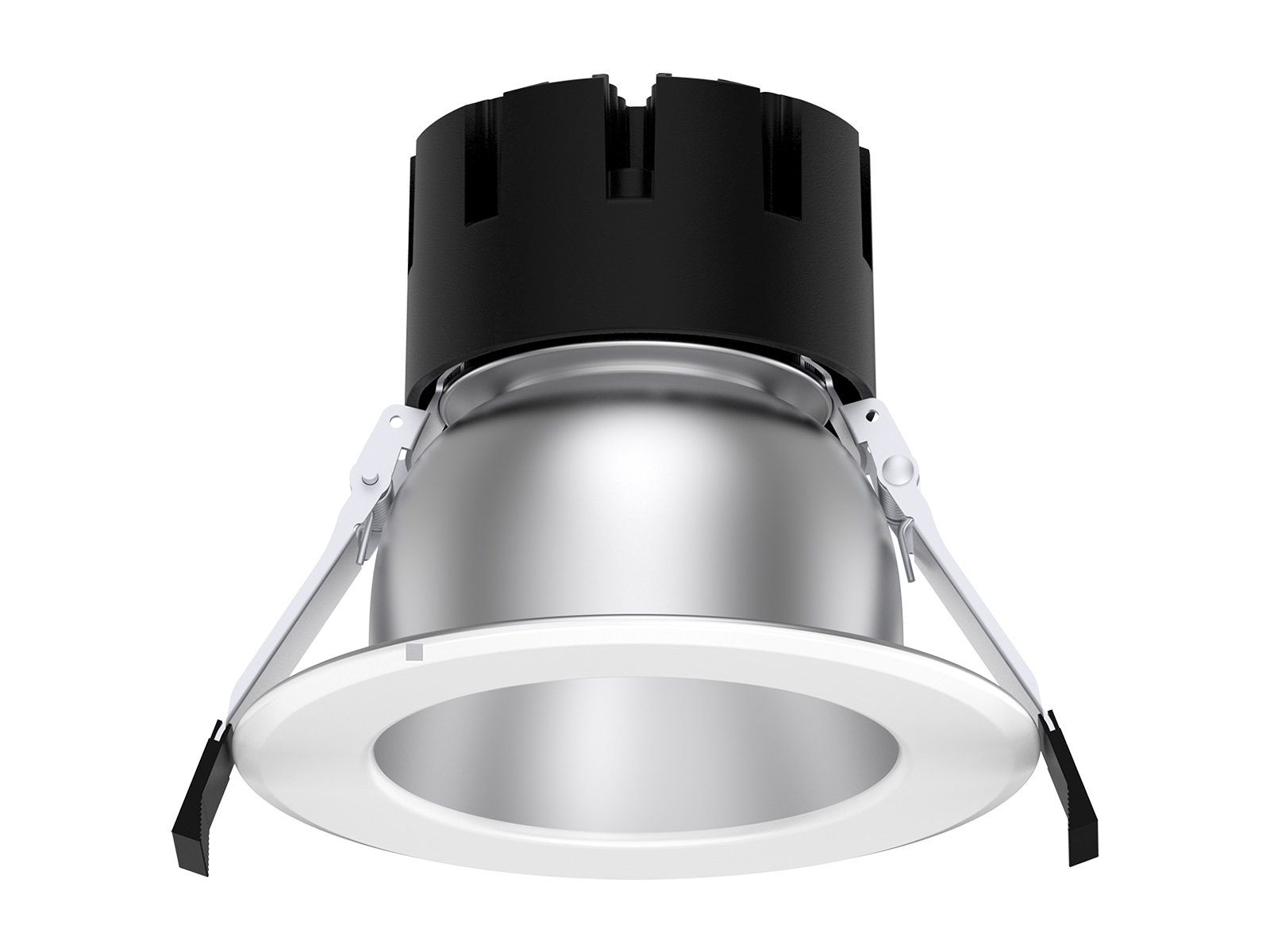

DL342 LED DownLight

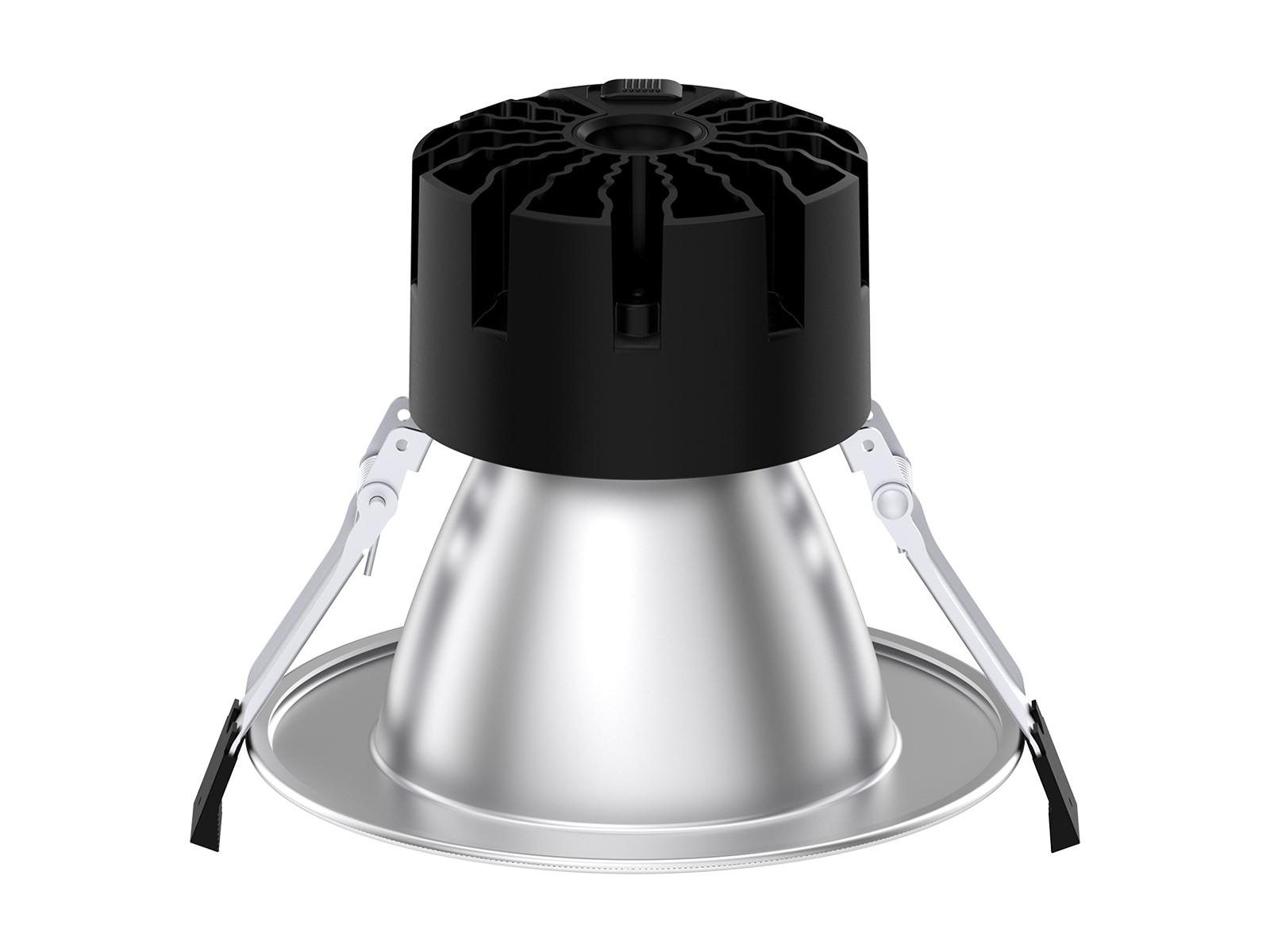

This retrofit kits is a deep reflector design.It has complete size: 4inch, 6inch, 8inch, 9.5inch, two beam angles: 50°/70°for 4inch and 6inch, 40°/60°for 8inch and 9.5inch. Besides, it adopts high lumen SMD light source which supports adjustable CCT and adjustable power, wet location design is suitable for wider application area.

Complete size options: 4/6/8/9.5inch.
High lumen efficiency,100LPW.
40 degree shielding angle.
Interchangeable CCT (3000K+4000K+5000K) with slide switch.
Adjustable power with slide switch.

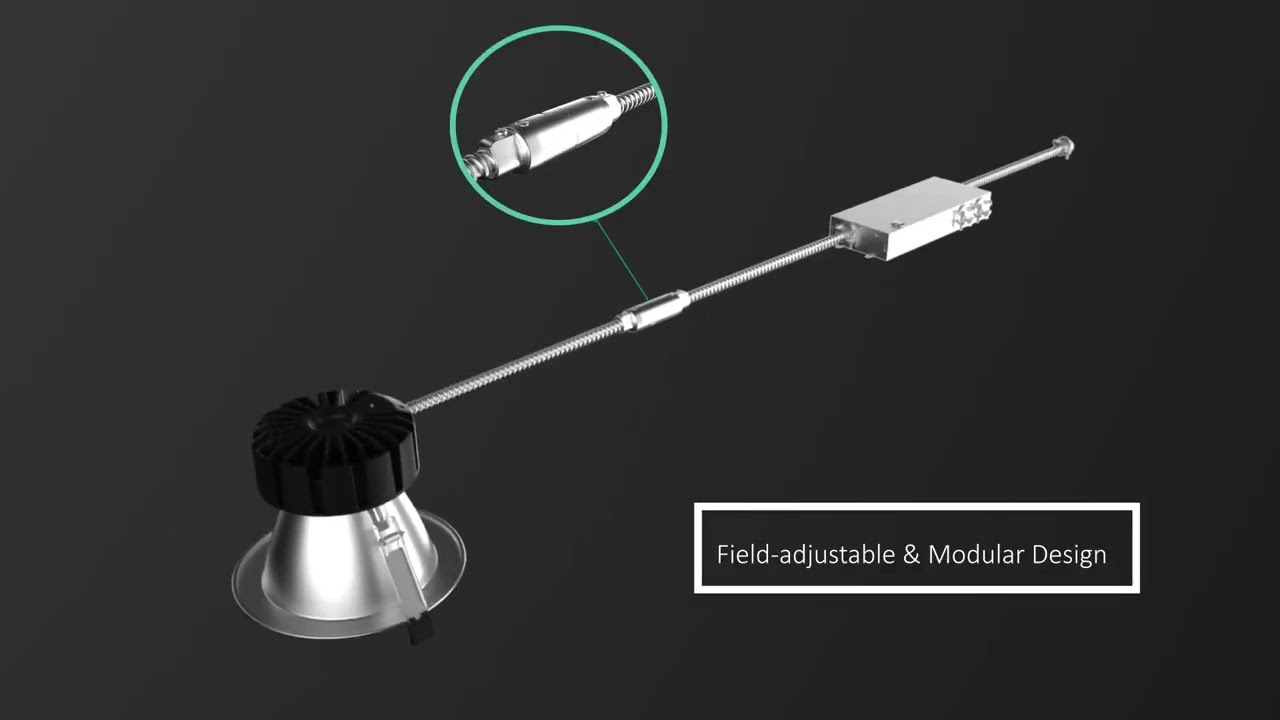

External flicker free driver with 1-10V dimming way.
Two beam angles reflectors interchangeable: 50°/70° for 4inch and 6inch, 40°/60° for 8inch and 9.5inch.
Wet location.

Code No.	DL342-4-20W	DL342-6-40W	DL342-8-60W	DL342-10-60W
Dimension(Inch)	Ø6"×5"	Ø8-1/4"×6-1/8"	Ø10-1/4"×7-1/8"	Ø11-1/2"×7-3/4"
Cutout (Inch)	110-133mm	160-190mm(6-5/16"~7-1/2")	205-241mm(8-1/16"~9-1/2")	225-270mm(8-7/8"~10-5/8")
	(4-5/16"~5-1/4")
Watt(W)	20/15/10W	40/30/20W	60/50/40W
Rated Input Voltage(V)	AC120-277V
Input Voltage(V)	AC110-300V
LED Module Input	DC36V 485/360/240mA	DC36V 1000/780/500mA	DC36V 1500/1250/1000mA
Light Source	SMD
SDCM	<6
CCT(K)	1-CCT: 2700K/3000K/3500K/4000K/5000K \|\| 3-CCT: 3000K + 4000K + 5000K
CCT Selection DIP Switch	YES
CRI	≥80
Beam Angle (°)	50°/70°		40°/60°
UGR	-
LED Driver	Driver built-out
Dimming Option	1-10V
Sensor	No
Emergency Kits	No
Electrical Class	With ground wire
Ingress Protection (IP Rating)	Wet location
Impact Resistance (IK Rating)	-
Product Finishing(Base)	Black RAL9005
Materials of Optics	PC+AL1070
Materials of Housing	Magnesium alloy AZ91D
Lifetime (hr)	50,000h
Glow wire test (℃ )	750℃
Operating Temp. (℃ )	-20℃ ~40℃
Storage Temp. (℃ )	-20℃ ~65℃
Installation	Recessed
